iV2 EMULSIO
INDUSTRIAL VACUUM CLEANER FOR SEPARATING OIL AND METAL CHIP
Emulsio iV2 is a compact, efficient and innovative vacuum cleaner from iVision that arises from the need to vacuum and separate shavings and emulsifying liquids produced during the processing of milling machines, lathes and numerically controlled work centers.
The vacuum cleaner comes with a clean and compact design: the integrated housing of the blower guarantees maximum handling even in cramped environments and the protection of mechanical components.
The loading / unloading controls are managed by a single integrated electronic system that ensure ease of use. The practical indicator lights guide the operator through each function.
A float stops automatically the suction, and, combined with the electronic safety system protect the blower from any incorrect use.
STANDARD BASIC SUPPLY
- 3kW Side channel blower
- Quick release collection bin
- Powder-coated steel frame
- Oil resistant wheels with parking break
- Electric Float
- Safety system for blower protection
- Chip / oils separating basket
- Container for liquids: 100 Lt
- Container for chips: 60 Lt
- Tangenziale inlet with ball valve
- 3 m of ø30 mm liquids unloading hose with gun
- 5 m of ø50 mm anti-oil for the collection of liquids and chips
- ø50 mm Suction nozzle
-
CLEANING KIT Ø 50 mm
AccessoriesACCESSORIES KLEANING KIT Ø 50 mm
The cleaning kit is usable on all of the series and consists of a robust, anti-abrasion tube that ends at the extremities with special zinc-plated steel accessories capable of transporting, without any obstacle, chippings and oil from the machine tool to the vacuum collection tank. The suction tube comes housed inside a support in order to facilitate the movement of the vacuum in the workshop without being an obstable for the operator, it allows the avoidance of leakage of oil during the maneuvers of the vacuum. -
CLEANING KIT Ø 70 mm
AccessoriesACCESSORIES KLEANING KIT Ø 70 mm
The cleaning kit, usable through the IV3 series, consists of a robust, anti-abrasion tube that ends at the extremities with special zinc-plated steel accessories capable of transporting, without any obstacle, chippings and oil from the machine tool to the vacuum collection tank. The suction tube comes housed inside a support in order to facilitate the movement of the vacuum in the workshop without being an obstable for the operator, it allows the avoidance of leakage of oil during the maneuvers of the vacuum. -

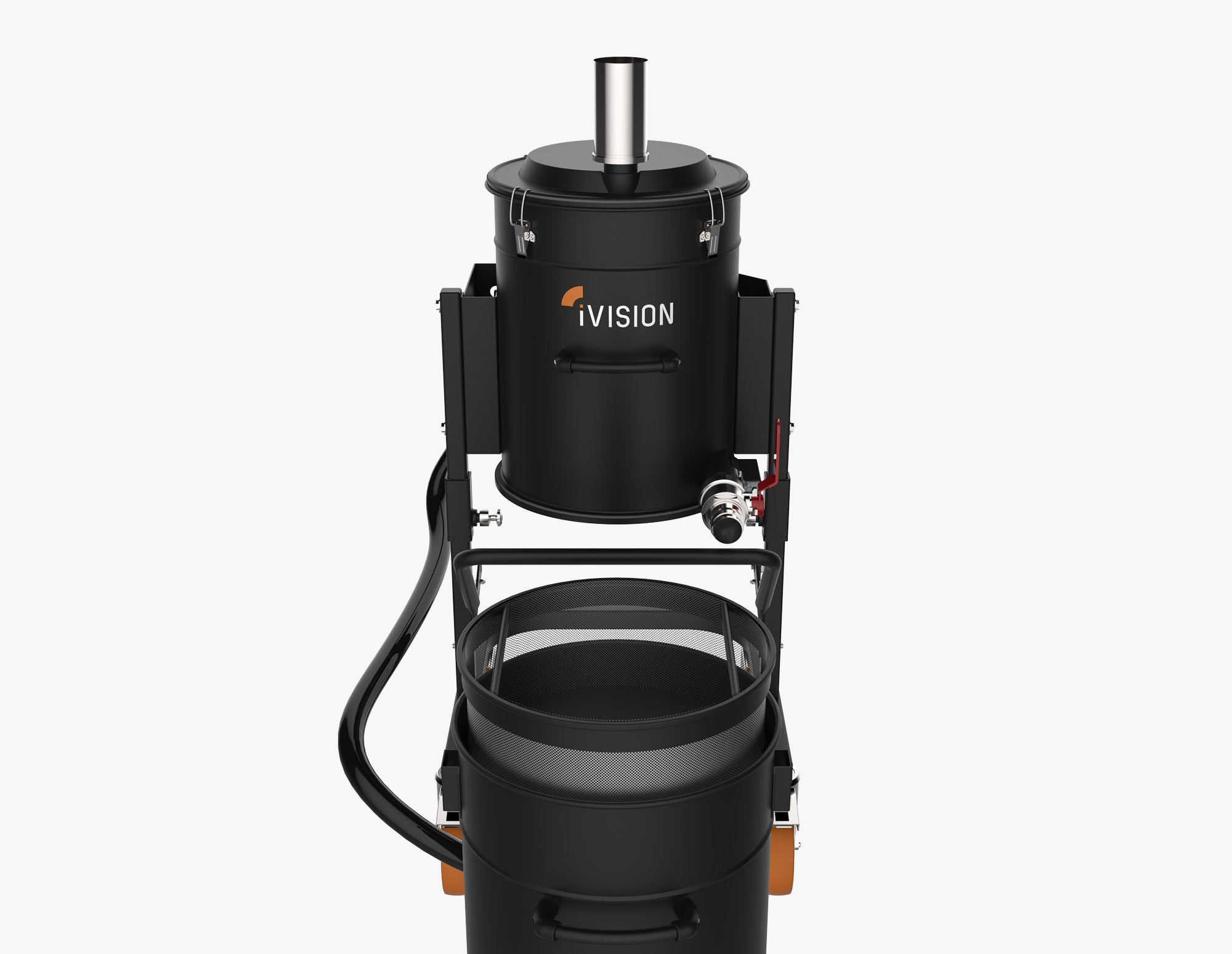

CHIPS SEPARATOR
AccessoriesHI-TECH VACUUM
Metallic mesh chips separator from lubrication. This optional accessory allows you to perfectly separate aspirated solid materials from liquid, to facilitate their storage and/or disposal. The chip separator holds the solid material allowing the liquid to deposit to the bottom of the collection tank.
