SAND LINE

Industrial Vacuum Cleaner for Sand

IINDUSTRIAL VACUUMS FOR SANDBLASTING

____________________

The high level of technology and the constant growth of experience that has always characterized the company iVision, have led us to develop a new range of industrial vacuum cleaners with side channel turbines, dedicated to machines that produce sandblasting that need an accurate and efficient suction as well as long-lasting solutions to achieve maximum accuracy and efficiency during the work process.
The range dedicated to this industry is particularly versatile and complete; it includes both vacuums for small workshops and large companies, offering a wide choice to suit every need.

THE MOST POWERFUL GRIT COLLECTORS

____________________

The Sand Line was born after acquiring abundant experience in the mechanical industrial sector in order to meet the growing demands of an efficient grit and dust collection, necessary during the process of sandblasting.
Ivision has long-term partnerships with many sandblasting manufacturers and has therefore developed specific accessories to facilitate and optimize the use of the vacuum cleaner with a sandblasting machine.
Optional accessories, like the dumpster, the touch screen system or the cleaning kit have been developed specifically for these kinds of machines.

CONTAINERS FOR
SAND COLLECTION

In order to meet your needs, the containers for sand collecting can be of various capacities starting from the smallest models, compact and manageable for a quick and easy moving emptying process, to the biggest collection containers up to 1000 Liters for heavy-duty work.
For large businesses requiring 24-hour production, iVision produced a centralized system with a continuous unloading cycle mediated by a rotary valve.

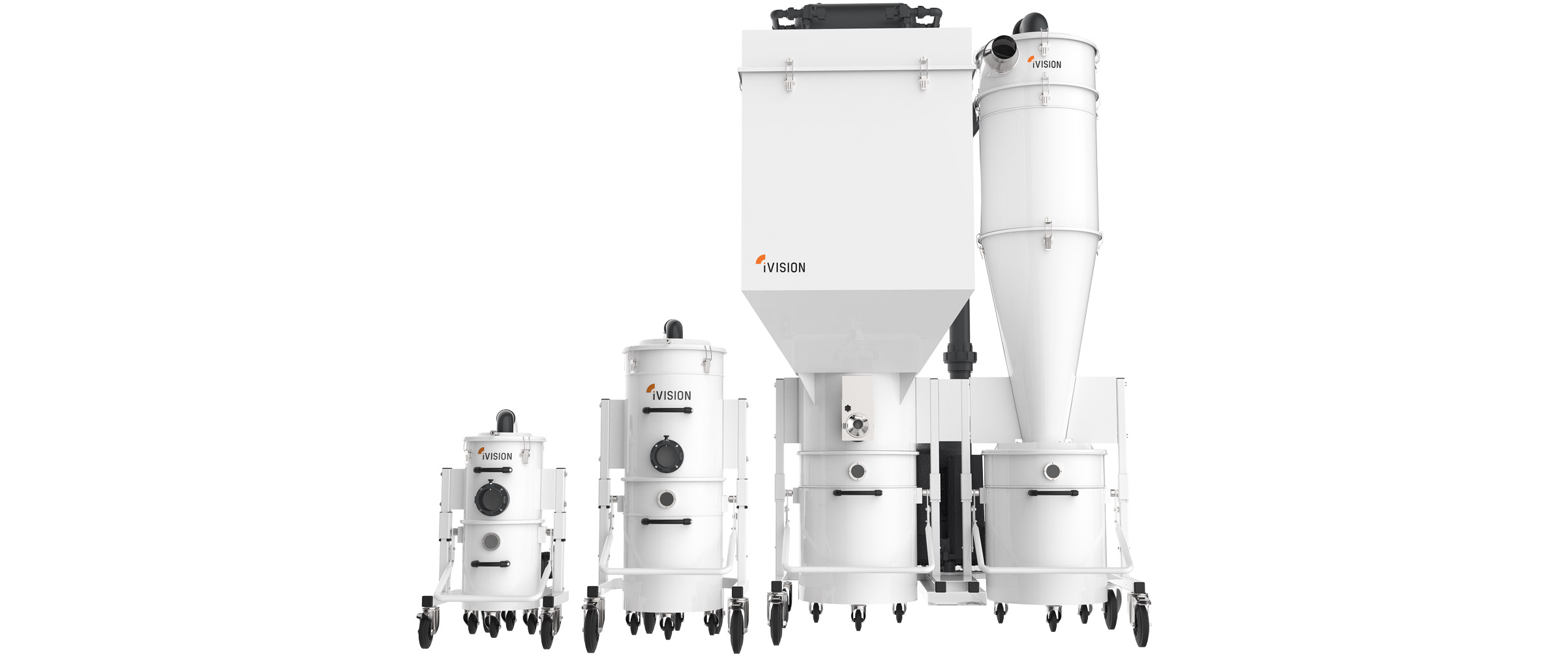

SAND LINE PRODUCTS

____________________

  • iv1-sand-line-industrial-vacuum-cleaners-ivision-vacuum-f
    iv1-sand-line-industrial-vacuum-cleaners-ivision-vacuum-f

    iV1 SAND

    INDUSTRIAL VACUUM CLEANERS FOR SAND

    The wheeled industrial vacuums of the iV1 Sand line are the most compact of the iVision industrial vacuums. We’ve developed a range of industrial vacuums models with side-channel turbines, used with enormous success in the world of industrial sandblasting. Thanks to its compact dimensions, the industrial vacuums of the iV1 Sand line allow the operator to easily move it within tight spaces. The dust and grits generated from sandblasters need an industrial suction particularly efficient and constant in order to safeguard the health of the operators and render the work more efficient. In addition to the ample range of three-phase, side-channel industrial vacuums, we’ve created and patented a series of accessories specific for the sandblasting world for the iV1 Sand line, that makes our products the ideal and indispensable solution for every sandblaster. In addition to the low noise level and the ease of maintenance, along with the design and utilization of Italian components, these are the known characteristics of iVision industrial vacuums. [sf_button colour="accent" type="rounded bordered" size="standard" link="http://ivisionvacuum.com/contact/quotation/" target="_self" icon="sf-im-testimonal" dropshadow="no" extraclass="ml0"]REQUEST A FREE QUOTATION[/sf_button]
  • iv2-sand-line-industrial-vacuum-cleaners-ivision-vacuum-f
    iv2-sand-line-industrial-vacuum-cleaners-ivision-vacuum-f

    iV2 SAND

    INDUSTRIAL VACUUM CLEANERS FOR SAND

    The industrial vacuums of the iV2 Sand line are used to collect dust and grit from sand in industrial environments where professional and efficient collection is needed to maintain a clean and healthy work environment for operators. iVision with this in mind has developed a range of industrial dust collection models with a side-channel turbine, dedicated to the world of industrial sandblasting. Besides the 100-liter collection capacity, the industrial vacuums of the iV2 Sand line permit the operator to move with agility in restricted spaces. The objective of an efficient industrial collection should be in the first place to safeguard the health of operators and to render the work done more efficient. For this exact reason the dust and grit generated from sandblasting need an industrial collection particularly efficient and constant; this is made possible by the industrial vacuums of the iV2 Sand line of iVision. In addition to the large range of wheeled industrial vacuums with side channel turbines, iVision has created and patented many accessories dedicated to the sandblasting world, specifically for the iV2 Sand line, that make every sandblaster capable of using a custom product for their needs. The low noise level and the ease of maintenance distinguishes iVision for its design and use of Italian components. [sf_button colour="accent" type="rounded bordered" size="standard" link="http://ivisionvacuum.com/contact/quotation/" target="_self" icon="sf-im-testimonal" dropshadow="no" extraclass="ml0"]REQUEST A FREE QUOTATION[/sf_button]
  • iv3-sand-line-industrial-vacuum-cleaners-ivision-vacuum-f
    iv3-sand-line-industrial-vacuum-cleaners-ivision-vacuum-f

    iV3 SAND

    INDUSTRIAL VACUUM CLEANERS FOR SAND

    The industrial vacuums of the iV3 Sand line are utilized for intensive dust and grit collection in construction or in large companies. These wheeled vacuums come used in a continuous way alongside sandblasters during construction and/or restructuring of boats or buildings. For having a 160 liter collection tank, the industrial vacuums of the Sand iV3 line are very manageable and allow the operator to move in tight spaces. The objective of an efficient and secure industrial collection needs to be first and foremost to safeguard the health of the operator and simultaneously that of collecting in large quantities the dust and grit in the shortest amount of time possible, also from a distance. This exact type of work can be done, in naval construction or in general in the world of construction where dust and grit generated needs to be collected with particular and constant efficiency thanks to the industrial vacuums of the iV3 Sand line of iVision. In addition to the ample range of wheeled, side channel turbine industrial vacuums, iVision has created and patented a large amount of accessories dedicated to the sandblasting world for the iV3 Sand line. These accessories render the industrial vacuum a custom product capable of satisfying the requests of clients with the most demanding of circumstances. The noise level of the industrial vacuums of the iV3 Sand line respect the limits of the law thanks to a silencer dedicated to this series of side channel turbines. [sf_button colour="accent" type="rounded bordered" size="standard" link="http://ivisionvacuum.com/contact/quotation/" target="_self" icon="sf-im-testimonal" dropshadow="no" extraclass="ml0"]REQUEST A FREE QUOTATION[/sf_button]
  • 2iv-custom-sand-line-industrial-vacuum-cleaners-ivision-vacuum
    2iv-custom-sand-line-industrial-vacuum-cleaners-ivision-vacuum

    iV CUSTOM SAND

    INDUSTRIAL VACUUM CLEANERS FOR SAND

    The extensive experience of our staff, just like the continuous desire to satisfy the requests of the most demanding clients, inspired the development of high technology products with personalized solutions to the world of industrial sandblasting. The industrial vacuums of the iVCustom Sand line come designed with the scope of finding specific solutions for the collection of dust and grit produced during the process of sandblasting in building and boat construction. One of the most frequent needs is that of working in a continuous cycle of industrial collection in construction and to eliminate interrupting the work due to turning off the vacuum to empty the collection tank. For this, iVision has developed wheeled industrial vacuums of the iVCustom Sand line with the solution of continuous emptying through a rotary valve directly from the sandblaster, creating in this way a system of continuous work. [sf_button colour="accent" type="rounded bordered" size="standard" link="http://ivisionvacuum.com/contact/quotation/" target="_self" icon="sf-im-testimonal" dropshadow="no" extraclass="ml0"]REQUEST A FREE QUOTATION[/sf_button]

THE PRINCIPAL ADVANTAGES

____________________

The main advantages of the Sand line are:

  • High efficiency vacuum cleaner with single or double-stage side-channel turbine.
  • All vacuum cleaners are equipped with safety valves
  • Use of smooth, flexible hoses that improve air flow
  • Touch Screen to easily recognize the level of contamination of the filter, thus facilitating the maintenance of the industrial vacuum
  • Reinforced cleaning kit for an efficient collection of sand grit
  • Automatic and semiautomatic filter cleaning
  • Optional rotary valve with continuous 24-hour functioning and direct emptying in the sandblasters
  • touch-industrial-vacuum-cleaners-ivision-vacuum
    touch-industrial-vacuum-cleaners-ivision-vacuum

    TOUCH SCREEN

    HI-TECH VACUUM

    The vacuum cleaner is equipped with a touch screen unit on the front. It allows the operator to quickly and easily monitor the level of contamination of the filter. Thanks to such a device, the operator is able to recognize in real time the filter condition and the efficiency of the whole vacuum cleaner. Afterwards, the operator can choose to clean the filter (in manual or automatic mode) and also manage the remote Start&Stop control option. Once the filter is completely clogged, the unit will automatically warn the operator of the need to replace the filter utilizing: • A visual signal
  • additional-dumpster-industrial-vacuum-cleaners-ivision-vacuum-1000l-open
    additional-dumpster-industrial-vacuum-cleaners-ivision-vacuum-1000l-open

    ADDITIONAL DUMPSTER

    HI-TECH VACUUM

    In the case that the vacuum cleaner standard capacity 42 Gal is not enough, iVision offers its customers additional high-capacity chip containers. Ivision has developed 2 types of dumpsters: A) 1000 Lt dumpster with automatic opening B) 500 Lt dumpster with manual opening The dumpsters are equipped with a visual filling indicator that shows the operator when it is time to empty the container.
  • cyclonic-prefilte-industrial-vacuum-cleaners-ivision-vacuum-160l
    cyclonic-prefilter-industrial-vacuum-cleaners-ivision-vacuum-1000l

    CYCLONIC PREFILTER

    HI-TECH VACUUM

    Strongly recommended whenever possible, the pre-filter is positioned between the vacuum and the chip-generating machine, as the first point of collection of the collected material. It is specially used to preserve the life of the filter inside the vacuum unit. It retains most of the collected material and can have a cone or cylindric shape and serves as a mechanical filter. Through a tangential entry the collected material is centrifuged into its interior until its speed gradually decreases and the material gradually falls to the bottom of the collecting unit due to the force of gravity. Such a process ensures that only a relatively low percentage of collected dust or chips manages to actually reach the real filter positioned in the upper part of the vacuum cleaner. The cyclonic pre-filter can be combined with a: • 160 L tank • 500 L tank • 1000 L tank The cyclonic pre-filter becomes almost mandatory for fine or very fine powders, which are very likely to clog the filter quickly, compromising the smooth operation of the entire system, but are only recommended for large, heavy chips. The main advantage of the cyclonic pre-filter is to protect the filter of the vacuum cleaner from quickly clogging, thus extending its life before replacement and significantly reducing the maintenance of the entire system.
  • lift-kit-industrial-vacuum-cleaners-ivision-vacuum-bianco2
    lift-kit-industrial-vacuum-cleaners-ivision-vacuum-bianco2

    LIFT KIT

    HI-TECH VACUUM

    The lifting device is used for emptying the 100 Lt (iV2 model) or the 160 Lt (iV3 model) chip container with the use of a forklift. The operators do not have to make any effort for the emptying process. At the sides of the collecting containers there are two hooks for the lifting kit to be connected to, which in turn is lifted from the truck by a chain.
  • remote-start-stop-industrial-vacuum-cleaners-ivision-vacuum
    remote-start-stop-industrial-vacuum-cleaners-ivision-vacuum

    REMOTE START & STOP

    HI-TECH VACUUM

    The kit allows the automatic switching on and off of the vacuum cleaner simultaneously with the machine tool when they are connected. This can occur in three different ways: a) The vacuum gets switched on by contact without electricity "potential free contact". b) The vacuum gets switched on with a 24V contact. c) The vacuum gets switched on with a 230V contact.
  • rotovalvola-industrial-vacuum-cleaners-ivision-vacuum
    rotovalvola-industrial-vacuum-cleaners-ivision-vacuum

    EMPTYING ROTARY VALVE KIT FOR CONTINUOUS WORK

    HI-TECH VACUUM

    For those that need a continuous work cycle in construction environments and need to empty without interrupting work due to turning off the vacuum to empty the collection container, the iVision rotary valve kit is an interesting solution.
  • automatic-cleaning-whit-shaking-industrial-vacuum-cleaners-ivision-vacuum
    automatic-cleaning-whit-shaking-industrial-vacuum-cleaners-ivision-vacuum

    AUTOMATIC CLEANING WITH SHAKING

    HI-TECH VACUUM

    Filter cleaning with a pneumatic piston requires being connected to an air adapter from 6-8 bar and via a pressure regulator that can vary the intensity of the sliding of the piston. • To effectively clean the filters mounted inside the vacuum, the vertical piston filter cleaning system was developed. Through a manual selector (semiautomatic solution) or by a timer (automatic version) a pneumatic piston acts from the bottom of the filter, shaking it intensely in a way that ensures that the chips or the dust transferred to the outside of the filter fall into the collection tank, permitting in this way the continued optimal functioning of the filter. • Vertical piston cleaning of the filter is recommended for any type of application, as it significantly improves the cleaning of the filter compared to the vibrating motor standard version. • Vertical piston cleaning of the filter, especially in its automatic version, becomes mandatory in the suctioning of fine dust that can clog the filter rapidly. In the case of large and heavy chips, this system is not mandatory, but for light or volatile material, yes! • The principal advantage of this system comes from the greater efficiency in the incisiveness of the shaking of the filter with a piston. Another advantage is the use of this system in its automatic version, shaking the filter every time that the motor is turned off, eliminating the typical problem of the reliability of the operator, who usually has to remember to turn on the cleaning of the filter.
  • cestello-separatore-per-benna-sabbiatura-industrial-vacuum-cleaners-ivision-vacuum
    cestello-separatore-per-benna-sabbiatura-industrial-vacuum-cleaners-ivision-vacuum

    CHIP SEPARATOR TANK FOR SANDBLASTING CONTAINER

    HI-TECH VACUUM

    This is a sieve made of a perforated sheet that allows, during suction, to retain the residue generated during blasting oprations and in general dirt. It has two comfortable handles the permit the removal of the container and the repositioning after having emptying the container.
  • kit-pulizia-sabbiatura-industrial-vacuum-cleaners-ivision-vacuum
    kit-pulizia-sabbiatura-industrial-vacuum-cleaners-ivision-vacuum

    SANDBLASTING CLEANING KIT

    HI-TECH VACUUM

    For office or the work environment at the end of the day cleaning, iVision has developed a cleaning kit particularly robust dedicated to the sandblasting world. This version can be enlarged according to the specific needs of the client and can be easily attached through special supports on the side of the vacuum, this also helps avoid the tube from impeding the vacuum movement.

ivision-vacuum-accessories

ACCESSORIES
Industrial Vacuum Cleaner Accessories

cover-brochure-sand-line-ivision-vacuum

pdf-icon-brochure

BROCHURE
SAND LINE

Don’t hesitate to contact us for a specialized quotation, we know how to guide you towards the product most adapt to your demands.

iVision, the best industrial material collection!
