PCB LINE

Industrial Vacuum Cleaner for Fiberglass and Aluminium

INDUSTRIAL VACUUMS FOR PRINTED CIRCUITS

____________________

The high level of technology and the constant growth of experience that has always characterized the company iVision, have led us to develop a new range of industrial vacuum cleaners with side channel turbines, dedicated to machines that produce printed circuit boards such as drilling machines, milling or contouring, that need an accurate and efficient suction of chips/powder to achieve maximum accuracy during the work process and a perfect end product.
The line dedicated to this sector is particularly versatile and complete; it includes vacuum
cleaners for single-spindle and multi-spindle machines, with centralized vacuum systems for managing an entire production facility, thus offering its customers a wide choice in order to suit every need.

THE MOST ADVANCED TECHNOLOGY IN THE MARKET

____________________

Numerous tests, hi-tech patents, and careful monitoring of details allows iVision Srl to be among the reference global suppliers in this product sector. The excellence of the design and construction techniques create a highly flexible material handling system, able to adapt to customer needs.
The vacuums are on wheels with centralized systems easy to use and virtually maintenance-free with innovative technical solutions, this is used to protect the units over time.
Optional accessories, such as the touch screen system, were developed specifically for the printed circuit industry.

We would like to thank Schmoll Maschinen Gmbh and Piciesse Elettronica s.r.l. for authorizing us to use the image of the machinery.

VACUUMS
BY MEASURE

In order to meet your needs, all of our vacuums are on wheels (also our centralized systems), and our containers for the collecting of chips can be of various capacities. Starting from the smallest models, that are compact and manageable for one quick emptying process and easily moveable, up to the big collection containers of 1,000 liters for heavy duty work.
For large businesses requiring 24-hour production, iVision produced a centralized system with a continuous unloading cycle mediated by a rotary valve.

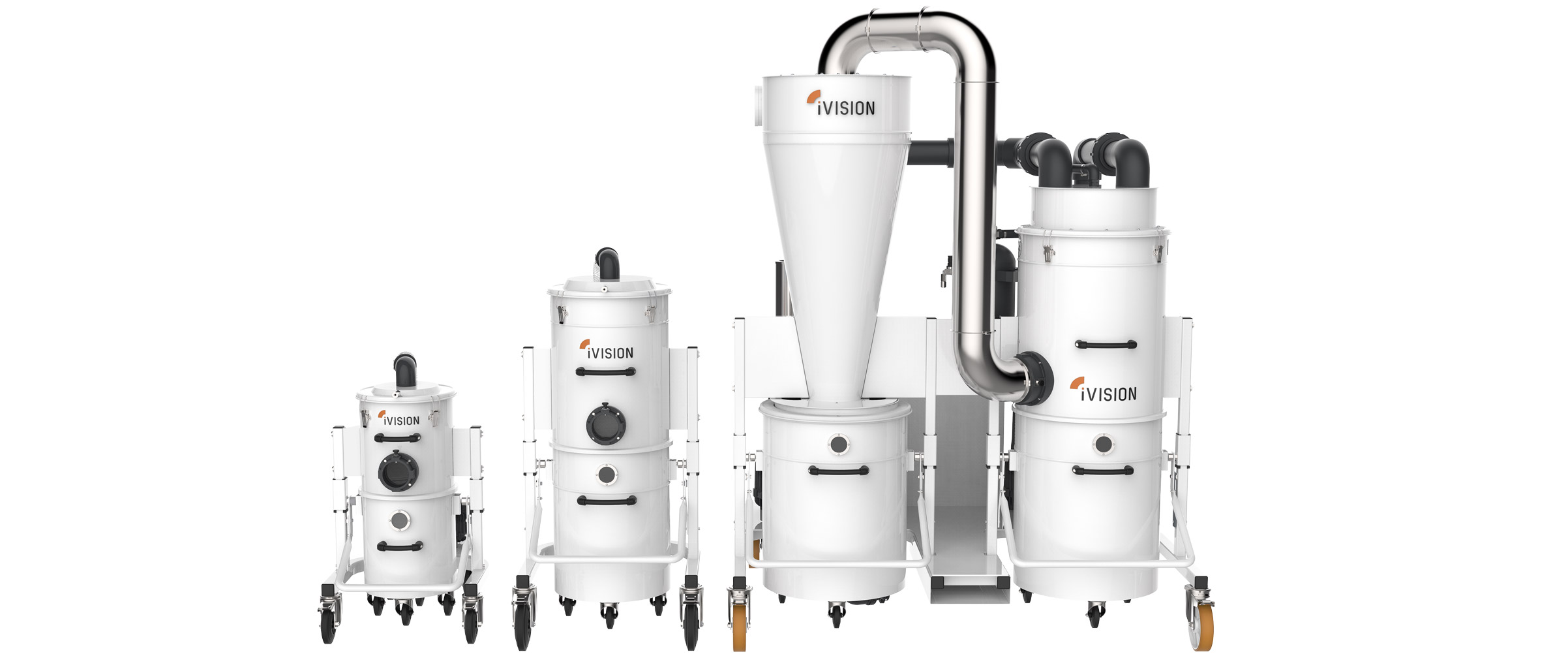

PCB LINE PRODUCTS

____________________

  • iv1-pcb-line-industrial-vacuum-cleaners-ivision-vacuum-f-2
    iv1-pcb-line-industrial-vacuum-cleaners-ivision-vacuum-f-2

    iV1 PCB

    INDUSTRIAL VACUUM CLEANERS FOR FIBERGLASS AND ALUMINIUM

    IV1 PCB line vacuum cleaners are the most compact of the iVision range. We have produced a specific range of industrial vacuum cleaners with side channel turbine, used with great success in the world of PCB manufacturing. The waste generated on drilling or milling machines require particularly efficient and constant industrial aspiration for a final product, precisely called PCB (Printed Circuit Board) that guarantees of micron tolerances and that during its processing is entirely free from chips or dust. In addition to the wide range of side channel turbine vacuum cleaners, iVision has created and even patented a range of special accessories for the world of printed circuit associated to IV1 line PCBs, which make our products the best solution, and indispensable for all PCB manufacturers. The very low noise level, ease of maintenance, as well as the design and use of Italian products, are the key features of iVision industrial vacuum cleaners. [sf_button colour="accent" type="rounded bordered" size="standard" link="http://ivisionvacuum.com/contact/quotation/" target="_self" icon="sf-im-testimonal" dropshadow="no" extraclass="ml0"]REQUEST A FREE QUOTATION[/sf_button]
  • iV2 PCB

    INDUSTRIAL VACUUM CLEANERS FOR FIBERGLASS AND ALUMINIUM

    IV2 PCB line vacuum cleaners are the best sellers among the wheeled vacuums of the iVision range, and are used for intensive collection of chips and dust generated by the drilling and milling machines with 2 to 6 spindles. This new and innovative range of industrial vacuum cleaners with side channel turbine, is used with great success in the world of PCB manufacturing in Europe, the USA, and in Asian countries led by China and South Korea. The waste generated on drilling or milling machines require a particularly efficient industrial aspiration and especially constant for a final product, precisely called PCB (Printed Circuit Board), which guarantees the minimum tolerances (in terms of Micron) and that during its processing is completely free of chips or powder, this is an obtainable condition thanks to the latest technologies available on the iV2 PCB vacuum cleaners. In addition to the already wide range of vacuum cleaners with side channel turbine, iVision has also developed and patented a range of special accessories for the printed circuit industry that make our products, quieter, simple and economic in the maintenance, ideal and indispensable for every PCB manufacturer. [sf_button colour="accent" type="rounded bordered" size="standard" link="http://ivisionvacuum.com/contact/quotation/" target="_self" icon="sf-im-testimonal" dropshadow="no" extraclass="ml0"]REQUEST A FREE QUOTATION[/sf_button]
  • iv3-pcb-line-industrial-vacuum-cleaners-ivision-vacuum-f
    iv3-pcb-line-industrial-vacuum-cleaners-ivision-vacuum-f

    iV3 PCB

    INDUSTRIAL VACUUM CLEANERS FOR FIBERGLASS AND ALUMINIUM

    iV3 PCB line vacuum cleaners are the most powerful among the wheeled vacuum cleaners and are utilized for the collection of chips and dust in the drilling machines and large milling machines (6-8 spindles). These industrial vacuum cleaners can be used, in their customized version, also with frequency inverter and be transformed into real centralized vacuum systems. Both in Europe and in the United States, but also in the countries which become a leading manufacturer of PCBs since the 2000. The waste generated on drilling or milling machines require effective and constant industrial aspiration in time, so as to be able to guarantee quality to the final product, the PCB (Printed Circuit Board) must ensure minimal tolerances (in terms of Micron) and during their processing, be completely free from chips or dust removed, thanks to the latest technologies available on the iV3 PCB vacuum cleaners all of this is possible. In addition to the industrial vacuum side channel turbine, iVision has designed, produced and patented a range of special accessories for the printed circuit industry that make all our products ideal and indispensable for all PCB manufacturers. [sf_button colour="accent" type="rounded bordered" size="standard" link="http://ivisionvacuum.com/contact/quotation/" target="_self" icon="sf-im-testimonal" dropshadow="no" extraclass="ml0"]REQUEST A FREE QUOTATION[/sf_button]
  • iv-custom-pcb-line-industrial-vacuum-cleaners-ivision-vacuum
    iv-custom-pcb-line-industrial-vacuum-cleaners-ivision-vacuum

    iV CUSTOM PCB

    INDUSTRIAL VACUUM CLEANER FOR FIBERGLASS AND ALUMINIUM

    The iV Custom PCB vacuum consist of a cyclonic prefilter, a central unit with turbine, an integrated filter, an electrical panel with inverter and all necessary components in the management of PLC control with color screen. The system is also equipped with a powerful silencer to ensure full compliance with international standards. The iV Custom vacuum cleaners are, for all intents and purposes, a centralized system and are among the most technologically advanced systems available on the market, and are not comparable to any of the traditionally known systems. The long experience of iVision staff, as well as a willingness to meet customer demand, have led to the development of high-tech products as well as customized solutions. Thanks to a frequency inverter of these filters iV Line Custom PCB can manage as efficiently as 15 CNC machines simultaneously. A sophisticated control sensor (optional) is able to measure the deterioration of the filter of the vacuum cleaners. iV Custom PCB, greatly reducing maintenance and ensuring a steady income and a permanent central vacuum. A dedicated control system, which allows control of all functions, allows iVision to be the only company in the world that can offer optionally up to a 5 year warranty on the entire centralized system. [sf_button colour="accent" type="rounded bordered" size="standard" link="http://ivisionvacuum.com/contact/quotation/" target="_self" icon="sf-im-testimonal" dropshadow="no" extraclass="ml0"]REQUEST A FREE QUOTATION[/sf_button]

Enter into the world of iVision.
You, too, can choose the best industrial vacuum.

REQUEST A FREE QUOTATION

THE PRINCIPAL ADVANTAGES

____________________

The principal advantages of the PCB line are:

  • Ability to modulate the frequency of the motor and thus optimize the consumption of electricity according to the real requirements of the machine
  • Suction pump with high efficiency side channel turbine specifically developed for this type of machine, which are equipped with safety valves
  • Touch screen – able to clearly and easily indicate the level of dirt of the filter; this data can be sent directly to the machine tool control panel and thus start the automatic filter cleaning procedures
  • Optional cleaning kit that can be utilized by the operator for cleaning the machine after work.
  • Increase in the production of the operator thanks to the minimal level of maintenance
  • touch-industrial-vacuum-cleaners-ivision-vacuum
    touch-industrial-vacuum-cleaners-ivision-vacuum

    TOUCH SCREEN

    HI-TECH VACUUM

    The vacuum cleaner is equipped with a touch screen unit on the front. It allows the operator to quickly and easily monitor the level of contamination of the filter. Thanks to such a device, the operator is able to recognize in real time the filter condition and the efficiency of the whole vacuum cleaner. Afterwards, the operator can choose to clean the filter (in manual or automatic mode) and also manage the remote Start&Stop control option. Once the filter is completely clogged, the unit will automatically warn the operator of the need to replace the filter utilizing: • A visual signal
  • cyclonic-prefilte-industrial-vacuum-cleaners-ivision-vacuum-160l
    cyclonic-prefilter-industrial-vacuum-cleaners-ivision-vacuum-1000l

    CYCLONIC PREFILTER

    HI-TECH VACUUM

    Strongly recommended whenever possible, the pre-filter is positioned between the vacuum and the chip-generating machine, as the first point of collection of the collected material. It is specially used to preserve the life of the filter inside the vacuum unit. It retains most of the collected material and can have a cone or cylindric shape and serves as a mechanical filter. Through a tangential entry the collected material is centrifuged into its interior until its speed gradually decreases and the material gradually falls to the bottom of the collecting unit due to the force of gravity. Such a process ensures that only a relatively low percentage of collected dust or chips manages to actually reach the real filter positioned in the upper part of the vacuum cleaner. The cyclonic pre-filter can be combined with a: • 160 L tank • 500 L tank • 1000 L tank The cyclonic pre-filter becomes almost mandatory for fine or very fine powders, which are very likely to clog the filter quickly, compromising the smooth operation of the entire system, but are only recommended for large, heavy chips. The main advantage of the cyclonic pre-filter is to protect the filter of the vacuum cleaner from quickly clogging, thus extending its life before replacement and significantly reducing the maintenance of the entire system.
  • remote-start-stop-industrial-vacuum-cleaners-ivision-vacuum
    remote-start-stop-industrial-vacuum-cleaners-ivision-vacuum

    REMOTE START & STOP

    HI-TECH VACUUM

    The kit allows the automatic switching on and off of the vacuum cleaner simultaneously with the machine tool when they are connected. This can occur in three different ways: a) The vacuum gets switched on by contact without electricity "potential free contact". b) The vacuum gets switched on with a 24V contact. c) The vacuum gets switched on with a 230V contact.
  • frequency-inverter-industrial-vacuum-cleaners-ivision-vacuum
    frequency-inverter-industrial-vacuum-cleaners-ivision-vacuum

    FREQUENCY INVERTER

    HI-TECH VACUUM

    Compact technology, powerful and built-to-last this characterizes the frequency inverter that regulates and manages the performance of iVision vacuums. The inverter operates the normal work of the turbines or intervenes instantaneously in all of the possible emergencies that may occur by increasing or decreasing the RPM of the engines in order to ensure the same performance for the system even in the case that a machine that the vacuum is attached to stops working.
  • kleaning-kit-50mm-industrial-vacuum-cleaners-ivision-vacuum
    kleaning-kit-50mm-industrial-vacuum-cleaners-ivision-vacuum

    CLEANING KIT Ø 50 mm

    ACCESSORIES KLEANING KIT Ø 50 mm

    The cleaning kit is usable on all of the series and consists of a robust, anti-abrasion tube that ends at the extremities with special zinc-plated steel accessories capable of transporting, without any obstacle, chippings and oil from the machine tool to the vacuum collection tank. The suction tube comes housed inside a support in order to facilitate the movement of the vacuum in the workshop without being an obstable for the operator, it allows the avoidance of leakage of oil during the maneuvers of the vacuum.

ivision-vacuum-accessories

ACCESSORIES
Industrial Vacuum Cleaner Accessories

cover-brochure-pcb-line-ivision-vacuum

pdf-icon-brochure

BROCHURE
PCB LINE

Don’t hesitate to contact us for a specialized quotation, we know how to guide you towards the product most adapt to your demands.

iVision, the best industrial material collection!
