EXTRUSION 38
EXTRUSION 38
INDUSTRIAL VACUUM CLEANERS FOR METAL & PVC CHIPS
The 38 vacuum cleaners of the Extrusion line are the most compact of the iVision range.
They are used together with small single -head saws with low production of chips and dust, as they are ideal for the collection of light materials such as PVC, aluminum and other light alloys.
The compact dimensions of the Extrusion 38 allow the operator to move with agility in confined spaces while maintaining an excellent quality standard in terms of suction and filtration efficiency efficiency.
Thanks to the three-phase motors these vacuums cleaners can safely work continuously with minimal maintenance.
STANDARD BASIC SUPPLY
- High flow centrifugal fans up to 1200 m³ / h
- Completely steel structure
- Non-marking swivel wheels with parking brake
- M class polyester bag filter
- Detachable container with wheels
- Container capacity 38 liters
- External exhaust with silencer
- Pneumatic filter shaker
- Use and maintenance manual
- C.E. certification
- Motor overload protector
- Electric cable 8 mt
The vacuum cleaner can also be supplied with ATEX-Zone 22 certifcation for explosive atmospheres. More info
The 38′ vacuum cleaners of the Extrusion line are the most compact of the iVision range.
EXTRUSION 38 thanks to the three-phase motors, these vacuums cleaners can safely work continuously with minimal maintenance.
-
CLEANING KIT Ø 50 mm
AccessoriesIVISION INDUSTRIAL VACUUM CLEANER ACCESSORIES
The cleaning kit is usable on all of the series and consists of a robust, anti-abrasion tube that ends at the extremities with special zinc-plated steel accessories capable of transporting, without any obstacle, chippings and oil from the machine tool to the vacuum collection tank. The suction tube comes housed inside a support in order to facilitate the movement of the vacuum in the workshop without being an obstable for the operator, it allows the avoidance of leakage of oil during the maneuvers of the vacuum. -
ANTISTATIC KIT
AccessoriesIVISION INDUSTRIAL VACUUM CLEANER ACCESSORIES
To be applied to all models of industrial vacuums in production. This kit allows you to unload electrostatic charges accumulated during the collection phase, avoiding transferring them to other machinery or operators. It’s particularly recommended during the working of aluminum, considering the chips of this material can create a potentially explosive atmosphere inside of the tank. -
AUTOMATIC CLEANING WITH SHAKING
AccessoriesIVISION INDUSTRIAL VACUUM CLEANER ACCESSORIES
Filter cleaning with a pneumatic piston requires being connected to an air adapter from 6-8 bar and via a pressure regulator that can vary the intensity of the sliding of the piston. • To effectively clean the filters mounted inside the vacuum, the vertical piston filter cleaning system was developed. Through a manual selector (semiautomatic solution) or by a timer (automatic version) a pneumatic piston acts from the bottom of the filter, shaking it intensely in a way that ensures that the chips or the dust transferred to the outside of the filter fall into the collection tank, permitting in this way the continued optimal functioning of the filter. • Vertical piston cleaning of the filter is recommended for any type of application, as it significantly improves the cleaning of the filter compared to the vibrating motor standard version. • Vertical piston cleaning of the filter, especially in its automatic version, becomes mandatory in the suctioning of fine dust that can clog the filter rapidly. In the case of large and heavy chips, this system is not mandatory, but for light or volatile material, yes! • The principal advantage of this system comes from the greater efficiency in the incisiveness of the shaking of the filter with a piston. Another advantage is the use of this system in its automatic version, shaking the filter every time that the motor is turned off, eliminating the typical problem of the reliability of the operator, who usually has to remember to turn on the cleaning of the filter. -
REMOTE START & STOP
AccessoriesIVISION INDUSTRIAL VACUUM CLEANER ACCESSORIES
The kit allows the automatic switching on and off of the vacuum cleaner simultaneously with the machine tool when they are connected. This can occur in three different ways: a) The vacuum gets switched on by contact without electricity "potential free contact". b) The vacuum gets switched on with a 24V contact. c) The vacuum gets switched on with a 230V contact. -
GATE CLOSURE
AccessoriesIVISION INDUSTRIAL VACUUM CLEANER ACCESSORIES
The gate valves that enable the closure of multiple vents allow the operator to choose to work with one, two or more hoses simultaneously. These gates can be operated manually by operators, handled automatically by machines, or remotely via foot pedal.
EXTRUSION 320
Extrusion LineINDUSTRIAL VACUUM CLEANERS FOR METAL & PVC CHIPS
The 320 vacuum cleaners of the Extrusion line are designed specifically for industrial purposes, this model is equipped with powerful motors and an advanced filtering system. Its vacuum characteristics and air flow rate make it ideal for the suction of chips or dust. The use of a cyclonic pre-filter captures more than 90% of the suctioned material before it reaches the main filter, thus preventing it from clogging and considerably extending its life.
EXTRUSION 1000
Extrusion LineINDUSTRIAL VACUUM CLEANERS FOR METAL & PVC CHIPS

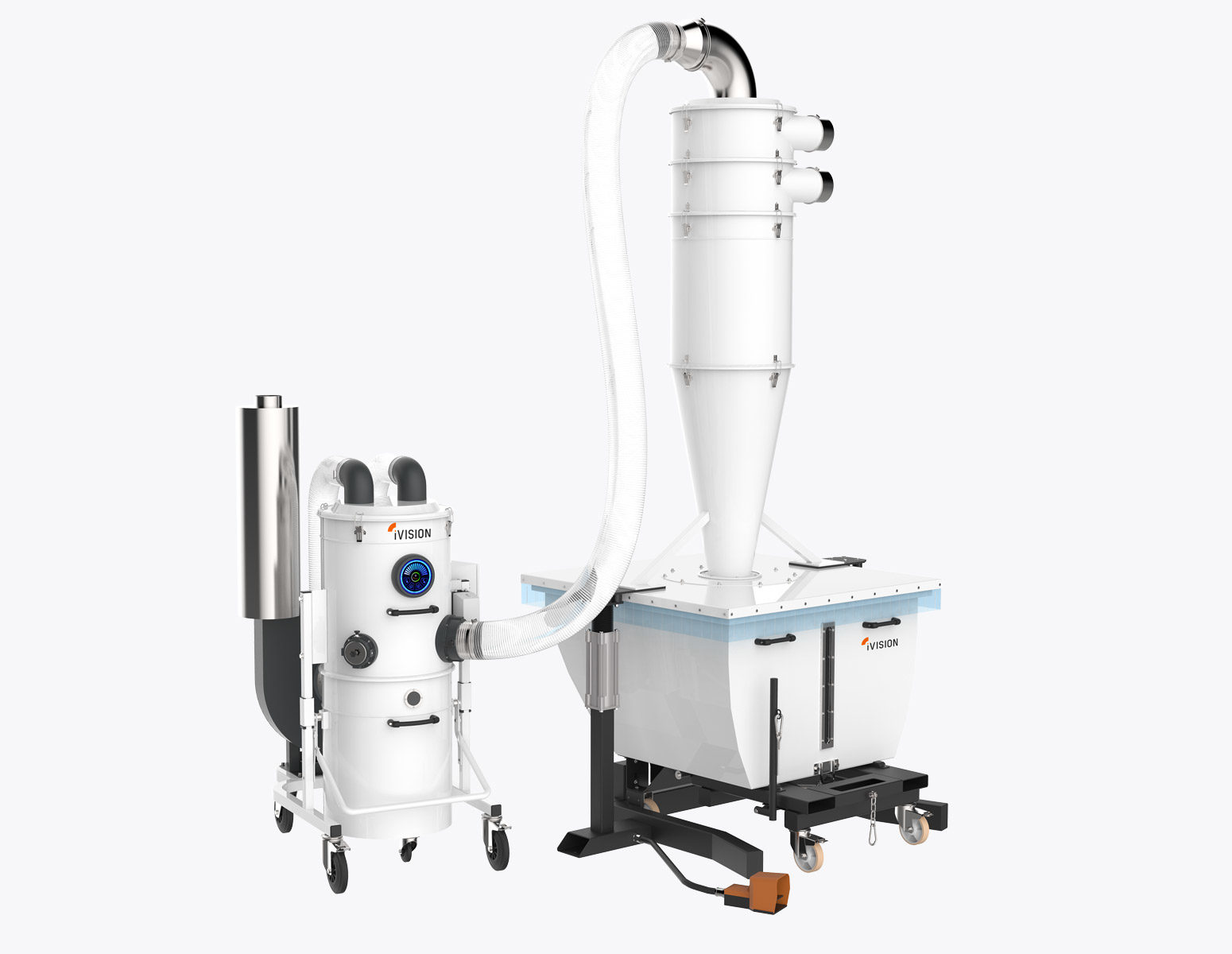

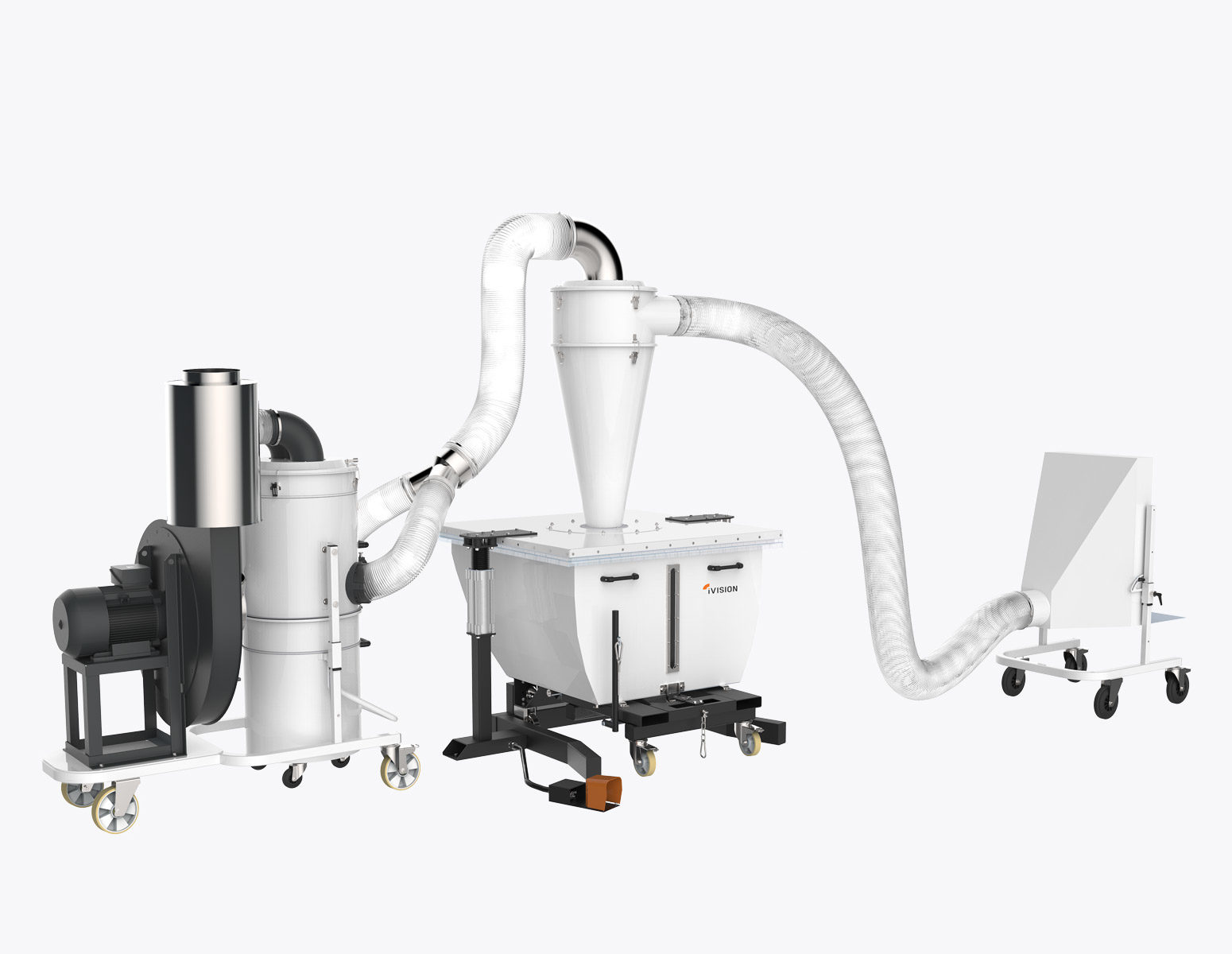

EXTRUSION 1000 litres is ideal for use in combination with doublehead saws or automatic cutting centres with high chip and dust production. This model features:- a cyclone pre-filter that captures more than 90% of the extracted material before it reaches the main filter
- a 1000-litre container with pneumatic opening and practical tipping unloading system
EXTRUSION 160
Extrusion LineINDUSTRIAL VACUUM CLEANERS FOR METAL & PVC CHIPS
The 160 vacuum cleaners of the Extrusion line are the best-selling iVision models thanks to their versatility. These excellent systems are used alongisde double-head saws or automatic cutting centers with a high production of chips and dust. Thanks to the wide range of industrial vacuums and the almost infinite possibility of customization, iVision is able to satisfy all the suction needs on machine tools in the extrusion world by combining the use of robust materials, the great construction care and the attention given to the design. The 160 are the vacuum cleaners chosen by those who demand the best in terms of performance, efficiency and innovation in the workplace.
