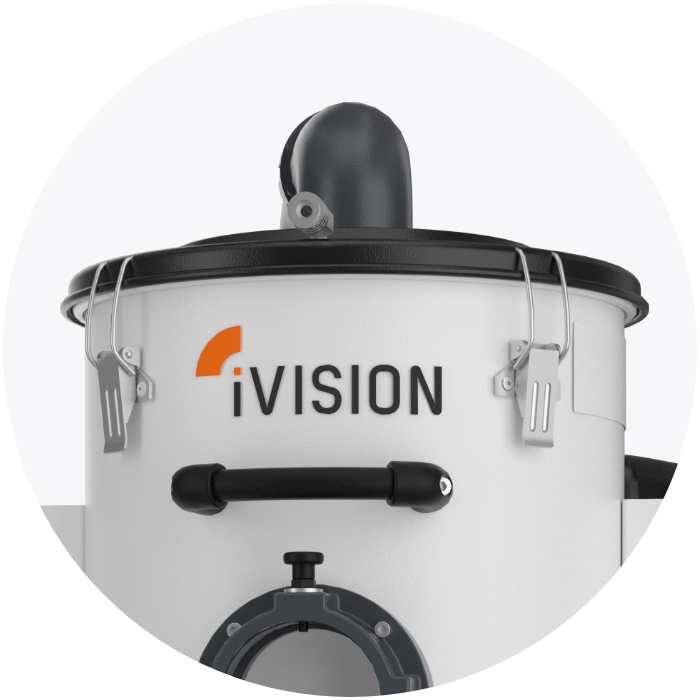

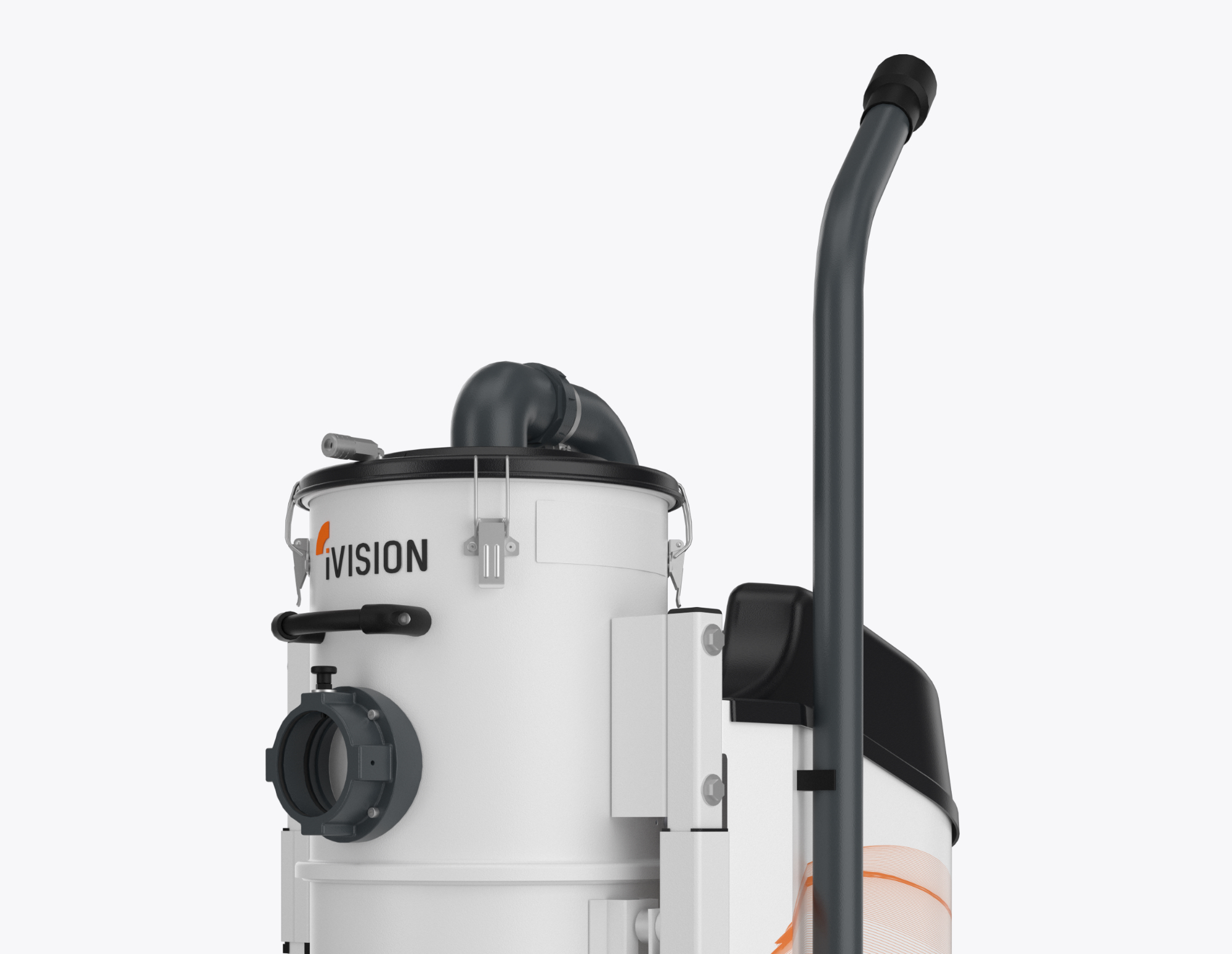

CLEAN 38
CLEAN 38
INDUSTRIAL VACUUMS FOR GENERIC CLEANING
The 38-liter industrial vacuum cleaners of the Clean line are the most compact and easy to handle of the entire iVision range and were created to facilitate the cleaning of companies and production plants.
In addition to the wide range of industrial vacuum cleaners, iVision has designed and patented many specific accessories for the world of industrial cleaning that can be associated with the Clean line. Among the accessories supplied with the CLEAN 38 vacuum cleaner, there is the 50mm cleaning kit consisting of a brush with steel handle, 4 meters of flexible hose and a flat lance.
The CLEAN range is equipped with a fairing, which covers the motor and the blower. Thanks to this fairing the mechanical parts are protected from dust and dirt and better preserved over time. In addition, the CLEAN 38 vacuum cleaner is equipped with a practical storage compartment that facilitates and further speeds up the cleaning operator’s activity.
The low noise level, the compact dimensions, the ease of use and the high suction capacity are the main features of CLEAN 38 industrial vacuum cleaners.
STANDARD BASIC SUPPLY
- Side channel blower with power up to 3 kW
- 50mm steel cleaning kit
- Ergonomic storage compartment
- Anchoring system of the cleaning kit
- Structure made completely of steel

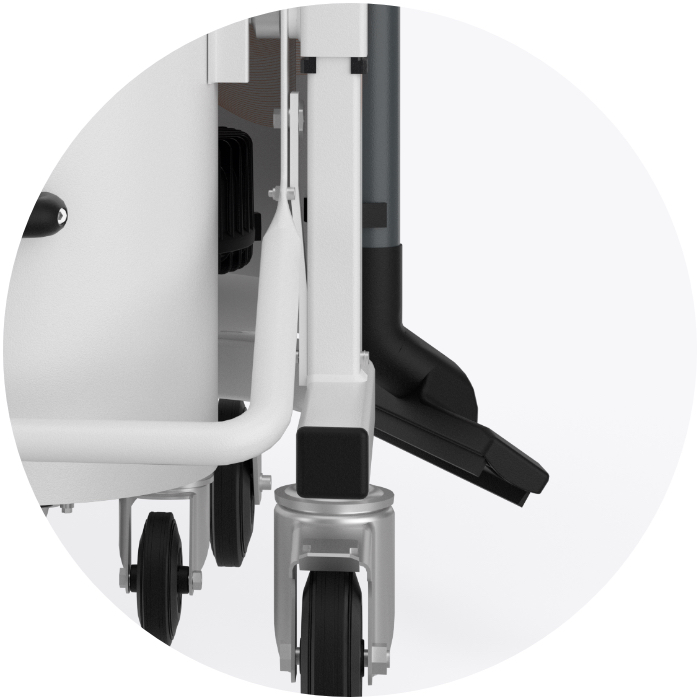

- Non-marking swivel wheels with parking brake
- Class M polyester bag filters
- Detachable container with wheels
- Tank capacity: 38 liters
- Silencer to reduce noise level
- Filter shaker with integrated pneumatic motor
- Motor overload protection
- 8mt electric cable
- Use and maintenance manual
- CE certification
-
CLEANING KIT Ø 50 mm
AccessoriesIVISION INDUSTRIAL VACUUM CLEANER ACCESSORIES
The cleaning kit is usable on all of the series and consists of a robust, anti-abrasion tube that ends at the extremities with special zinc-plated steel accessories capable of transporting, without any obstacle, chippings and oil from the machine tool to the vacuum collection tank. The suction tube comes housed inside a support in order to facilitate the movement of the vacuum in the workshop without being an obstable for the operator, it allows the avoidance of leakage of oil during the maneuvers of the vacuum. -
SPECIAL KIT FOR FLOOR CLEANING
AccessoriesIVISION INDUSTRIAL VACUUM CLEANER ACCESSORIES
For floor cleaning, iVision has developed a specific kit with a fixed brush positioned on the front part of the vacuum with a handle for manuevering. -
ANTISTATIC KIT
AccessoriesIVISION INDUSTRIAL VACUUM CLEANER ACCESSORIES
To be applied to all models of industrial vacuums in production. This kit allows you to unload electrostatic charges accumulated during the collection phase, avoiding transferring them to other machinery or operators. It’s particularly recommended during the working of aluminum, considering the chips of this material can create a potentially explosive atmosphere inside of the tank. -
AUTOMATIC CLEANING WITH SHAKING
AccessoriesIVISION INDUSTRIAL VACUUM CLEANER ACCESSORIES
Filter cleaning with a pneumatic piston requires being connected to an air adapter from 6-8 bar and via a pressure regulator that can vary the intensity of the sliding of the piston. • To effectively clean the filters mounted inside the vacuum, the vertical piston filter cleaning system was developed. Through a manual selector (semiautomatic solution) or by a timer (automatic version) a pneumatic piston acts from the bottom of the filter, shaking it intensely in a way that ensures that the chips or the dust transferred to the outside of the filter fall into the collection tank, permitting in this way the continued optimal functioning of the filter. • Vertical piston cleaning of the filter is recommended for any type of application, as it significantly improves the cleaning of the filter compared to the vibrating motor standard version. • Vertical piston cleaning of the filter, especially in its automatic version, becomes mandatory in the suctioning of fine dust that can clog the filter rapidly. In the case of large and heavy chips, this system is not mandatory, but for light or volatile material, yes! • The principal advantage of this system comes from the greater efficiency in the incisiveness of the shaking of the filter with a piston. Another advantage is the use of this system in its automatic version, shaking the filter every time that the motor is turned off, eliminating the typical problem of the reliability of the operator, who usually has to remember to turn on the cleaning of the filter. -
CHIPS SEPARATOR
AccessoriesIVISION INDUSTRIAL VACUUM CLEANER ACCESSORIES
Metallic mesh chips separator from lubrication. This optional accessory allows you to perfectly separate aspirated solid materials from liquid, to facilitate their storage and/or disposal. The chip separator holds the solid material allowing the liquid to deposit to the bottom of the collection tank. -
REMOTE START & STOP
AccessoriesIVISION INDUSTRIAL VACUUM CLEANER ACCESSORIES
The kit allows the automatic switching on and off of the vacuum cleaner simultaneously with the machine tool when they are connected. This can occur in three different ways: a) The vacuum gets switched on by contact without electricity "potential free contact". b) The vacuum gets switched on with a 24V contact. c) The vacuum gets switched on with a 230V contact.
CLEAN 100
Clean LineINDUSTRIAL VACUUMS FOR GENERIC CLEANING
The 100-liter vacuum cleaners of the CLEAN line have a high suction capacity and are used for general cleaning or for the intensive collection of dust and chips generated by machine tools within the production departments of industries. The CLEAN range is equipped with a fairing, which covers the motor and the blower. Thanks to this fairing the mechanical parts are protected from dust and dirt and are better preserved over time. Moreover, the CLEAN 100 vacuum cleaner is equipped with a practical storage compartment that facilitates and further speeds up the cleaning operator's activity. The low noise level, the compact dimensions, the ease of use and the high suction capacity are the main features of CLEAN 100 industrial vacuum cleaners.
