SANDBLASTING CLEANING KIT
SANDBLASTING CLEANING KIT
IVISION INDUSTRIAL VACUUM CLEANER ACCESSORIES
For office or the work environment at the end of the day cleaning, iVision has developed a cleaning kit particularly robust dedicated to the sandblasting world.
This version can be enlarged according to the specific needs of the client and can be easily attached through special supports on the side of the vacuum, this also helps avoid the tube from impeding the vacuum movement.
FILTER FOR VACUUM CLEANER
AccessoriesIVISION INDUSTRIAL VACUUM CLEANER ACCESSORIES
The classification filters for vacuum cleaner and powders emissions into the environment, is assigned by the type of powders and the degree of danger to health. For its suction devices such classification is regulated by IEC 60335-2-69 worldwide. This classification provides several categories of powders, such as: • Category of powders L (low/moderate): fall into that category powders with MPC values (maximum permitted concentration in the work place) > 1 mg / m³Are retained at least 99% of particles aspirated.The disposal of the collected material must be made trying to raise a few powders. • Category of powders M (medium): fall into that category powders with MPC values (maximum permitted concentration in the work place) > 0.1 mg / m³ and wood powdersAre retained at least 99.9% of particles aspirated.The disposal of the collected material must be made trying to raise a few powders. • Category of powders H (high): fall into that category powders with MPC values (maximum permitted concentration in the work place) < 0.1 mg / m³, with carcinogenic and pathogenic powdersAre held at least 99.995% of particles aspirated.The disposal of the collected material must be done without raising powders. On each iVision vacuum cleaner is applied a label indicating the hazard class of the dust in the environment allowed.
HEPA FILTER
AccessoriesIVISION INDUSTRIAL VACUUM CLEANER ACCESSORIES
HEPA is the acronym used for the definition “High Efficiency Particulate Air”. It ‘a kind of filter for vacuum cleaner with a particular system of filtering with high efficiency for fluid, liquid or gas. It has the ability to trap a very high amount of particles of very small size, ability that other filters for vacuum cleaners do not have. Indeed, there are different categories of filters (L / M / H), and different categories of HEPA filters, that has made according to the material more efficient to inhale. The HEPA filter is composed from microfiber filter sheets (generally borosilicate) assembled in multiple layers, and separated by aluminum septa. The microfiber filter sheets have the task to block the polluting solid particles (or particulate). The solid particles are very small and can be harmful to health or may affect the quality of the final product to be obtained. HEPA filters are part of the category of the “absolute filters”, justified by the fact that these filters have a high efficiency of filterign. In particular, HEPA filters introduce an efficiency of filtering between 85% (H10) and 99.995% (H14). The filtration efficiency of particles of 0.3 µm, is regulated by the UNI EN 1822.
CYCLONIC PREFILTER
AccessoriesIVISION INDUSTRIAL VACUUM CLEANER ACCESSORIES

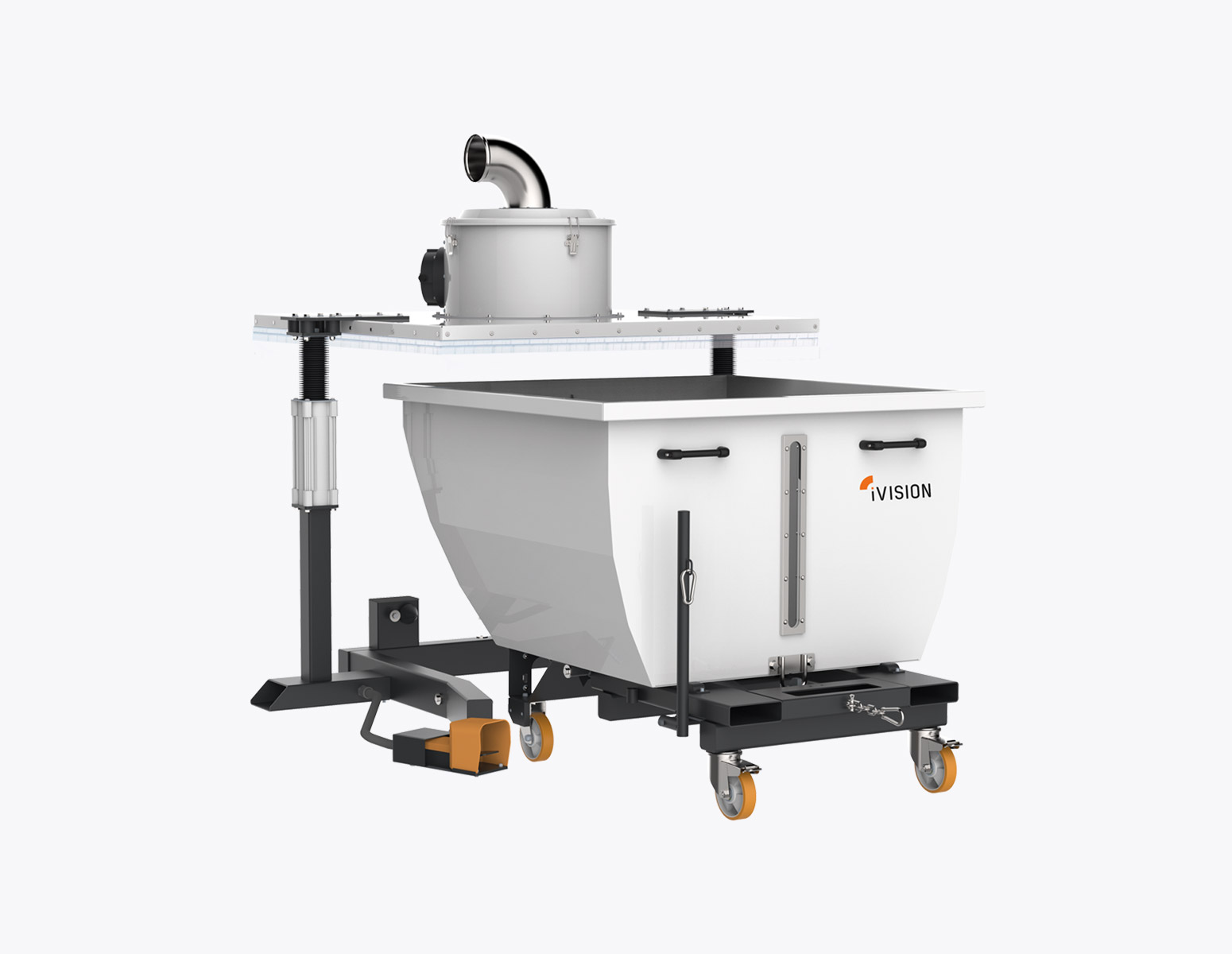

Strongly recommended whenever possible, the pre-filter is positioned between the vacuum and the chip-generating machine, as the first point of collection of the collected material. It is specially used to preserve the life of the filter inside the vacuum unit. It retains most of the collected material and can have a cone or cylindric shape and serves as a mechanical filter. Through a tangential entry the collected material is centrifuged into its interior until its speed gradually decreases and the material gradually falls to the bottom of the collecting unit due to the force of gravity. Such a process ensures that only a relatively low percentage of collected dust or chips manages to actually reach the real filter positioned in the upper part of the vacuum cleaner. The cyclonic pre-filter can be combined with a: • 160 L tank • 500 L tank • 1000 L tank The cyclonic pre-filter becomes almost mandatory for fine or very fine powders, which are very likely to clog the filter quickly, compromising the smooth operation of the entire system, but are only recommended for large, heavy chips. The main advantage of the cyclonic pre-filter is to protect the filter of the vacuum cleaner from quickly clogging, thus extending its life before replacement and significantly reducing the maintenance of the entire system.
