INDUSTRIAL VACUUM CLEANERS FOR SAND
The industrial vacuums of the iV3 Sand line are utilized for intensive dust and grit collection in construction or in large companies. These wheeled vacuums come used in a continuous way alongside sandblasters during construction and/or restructuring of boats or buildings. For having a 160 liter collection tank, the industrial vacuums of the Sand iV3 line are very manageable and allow the operator to move in tight spaces.
The objective of an efficient and secure industrial collection needs to be first and foremost to safeguard the health of the operator and simultaneously that of collecting in large quantities the dust and grit in the shortest amount of time possible, also from a distance.
This exact type of work can be done, in naval construction or in general in the world of construction where dust and grit generated needs to be collected with particular and constant efficiency thanks to the industrial vacuums of the iV3 Sand line of iVision.
In addition to the ample range of wheeled, side channel turbine industrial vacuums, iVision has created and patented a large amount of accessories dedicated to the sandblasting world for the iV3 Sand line.
These accessories render the industrial vacuum a custom product capable of satisfying the requests of clients with the most demanding of circumstances.
The noise level of the industrial vacuums of the iV3 Sand line respect the limits of the law thanks to a silencer dedicated to this series of side channel turbines.
- Side-channel turbine
- Security valve
- Visual filling indicator
- Structure completely made of steel

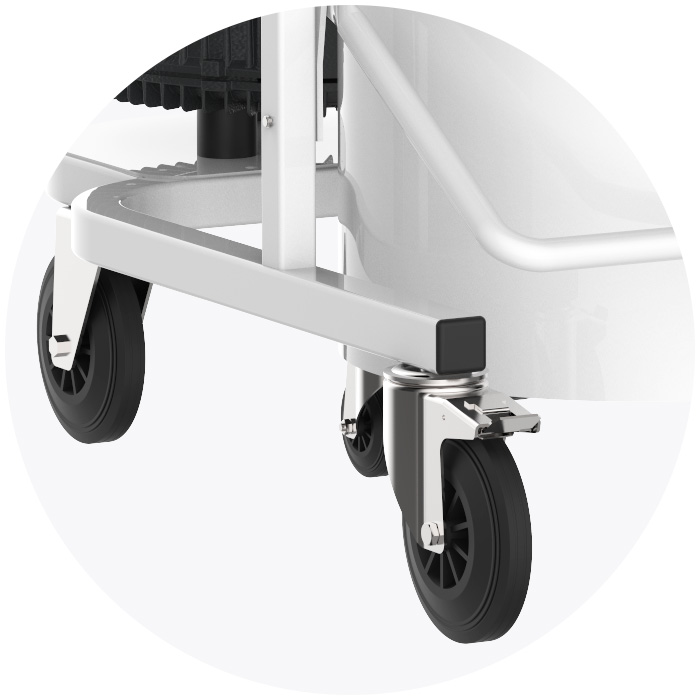

- Anti-scuff wheels with parking brake
- Container capacity 160 liters
- Rapid-release container
- Schnellöffnung des Spänebehälters
- Rapid-release container
- Antistatic kit
- Atex Zona 22
- Remote Control
- Touch Screen
- PVC collection bags for chips
- Automatic and semiautomatic filter cleaning
- Liftkit for emptying collection tank
- Continuous emptying system through a rotary valve
- Additional 500 Liter tank
You can also have iVision vacuums with ATEX-Zone 22 certifcation for potentially explosive environments. More info
The vacuums of the iV3 Sand line are conceptualized to meet the ever-growing demands of our clients. In the world of industrial sandblasting the name iVision is becoming a synonym of strength and quality.
HI-TECH VACUUMFor office or the work environment at the end of the day cleaning, iVision has developed a cleaning kit particularly robust dedicated to the sandblasting world. This version can be enlarged according to the specific needs of the client and can be easily attached through special supports on the side of the vacuum, this also helps avoid the tube from impeding the vacuum movement.
HI-TECH VACUUMTo be applied to all models of industrial vacuums in production. This kit allows you to unload electrostatic charges accumulated during the collection phase, avoiding transferring them to other machinery or operators. It’s particularly recommended during the working of aluminum, considering the chips of this material can create a potentially explosive atmosphere inside of the tank.
HI-TECH VACUUMThis is a sieve made of a perforated sheet that allows, during suction, to retain the residue generated during blasting oprations and in general dirt. It has two comfortable handles the permit the removal of the container and the repositioning after having emptying the container.
HI-TECH VACUUMFilter cleaning with a pneumatic piston requires being connected to an air adapter from 6-8 bar and via a pressure regulator that can vary the intensity of the sliding of the piston. • To effectively clean the filters mounted inside the vacuum, the vertical piston filter cleaning system was developed. Through a manual selector (semiautomatic solution) or by a timer (automatic version) a pneumatic piston acts from the bottom of the filter, shaking it intensely in a way that ensures that the chips or the dust transferred to the outside of the filter fall into the collection tank, permitting in this way the continued optimal functioning of the filter. • Vertical piston cleaning of the filter is recommended for any type of application, as it significantly improves the cleaning of the filter compared to the vibrating motor standard version. • Vertical piston cleaning of the filter, especially in its automatic version, becomes mandatory in the suctioning of fine dust that can clog the filter rapidly. In the case of large and heavy chips, this system is not mandatory, but for light or volatile material, yes! • The principal advantage of this system comes from the greater efficiency in the incisiveness of the shaking of the filter with a piston. Another advantage is the use of this system in its automatic version, shaking the filter every time that the motor is turned off, eliminating the typical problem of the reliability of the operator, who usually has to remember to turn on the cleaning of the filter.
HI-TECH VACUUMFor those that need a continuous work cycle in construction environments and need to empty without interrupting work due to turning off the vacuum to empty the collection container, the iVision rotary valve kit is an interesting solution.
HI-TECH VACUUMThe kit allows the automatic switching on and off of the vacuum cleaner simultaneously with the machine tool when they are connected. This can occur in three different ways: a) The vacuum gets switched on by contact without electricity "potential free contact". b) The vacuum gets switched on with a 24V contact. c) The vacuum gets switched on with a 230V contact.
HI-TECH VACUUMThe lifting device is used for emptying the 100 Lt (iV2 model) or the 160 Lt (iV3 model) chip container with the use of a forklift. The operators do not have to make any effort for the emptying process. At the sides of the collecting containers there are two hooks for the lifting kit to be connected to, which in turn is lifted from the truck by a chain.
HI-TECH VACUUMStrongly recommended whenever possible, the pre-filter is positioned between the vacuum and the chip-generating machine, as the first point of collection of the collected material. It is specially used to preserve the life of the filter inside the vacuum unit. It retains most of the collected material and can have a cone or cylindric shape and serves as a mechanical filter. Through a tangential entry the collected material is centrifuged into its interior until its speed gradually decreases and the material gradually falls to the bottom of the collecting unit due to the force of gravity. Such a process ensures that only a relatively low percentage of collected dust or chips manages to actually reach the real filter positioned in the upper part of the vacuum cleaner. The cyclonic pre-filter can be combined with a: • 160 L tank • 500 L tank • 1000 L tank The cyclonic pre-filter becomes almost mandatory for fine or very fine powders, which are very likely to clog the filter quickly, compromising the smooth operation of the entire system, but are only recommended for large, heavy chips. The main advantage of the cyclonic pre-filter is to protect the filter of the vacuum cleaner from quickly clogging, thus extending its life before replacement and significantly reducing the maintenance of the entire system.
HI-TECH VACUUMIn the case that the vacuum cleaner standard capacity 42 Gal is not enough, iVision offers its customers additional high-capacity chip containers. Ivision has developed 2 types of dumpsters: A) 1000 Lt dumpster with automatic opening B) 500 Lt dumpster with manual opening The dumpsters are equipped with a visual filling indicator that shows the operator when it is time to empty the container.
HI-TECH VACUUMThe vacuum cleaner is equipped with a touch screen unit on the front. It allows the operator to quickly and easily monitor the level of contamination of the filter. Thanks to such a device, the operator is able to recognize in real time the filter condition and the efficiency of the whole vacuum cleaner. Afterwards, the operator can choose to clean the filter (in manual or automatic mode) and also manage the remote Start&Stop control option. Once the filter is completely clogged, the unit will automatically warn the operator of the need to replace the filter utilizing: • A visual signal
