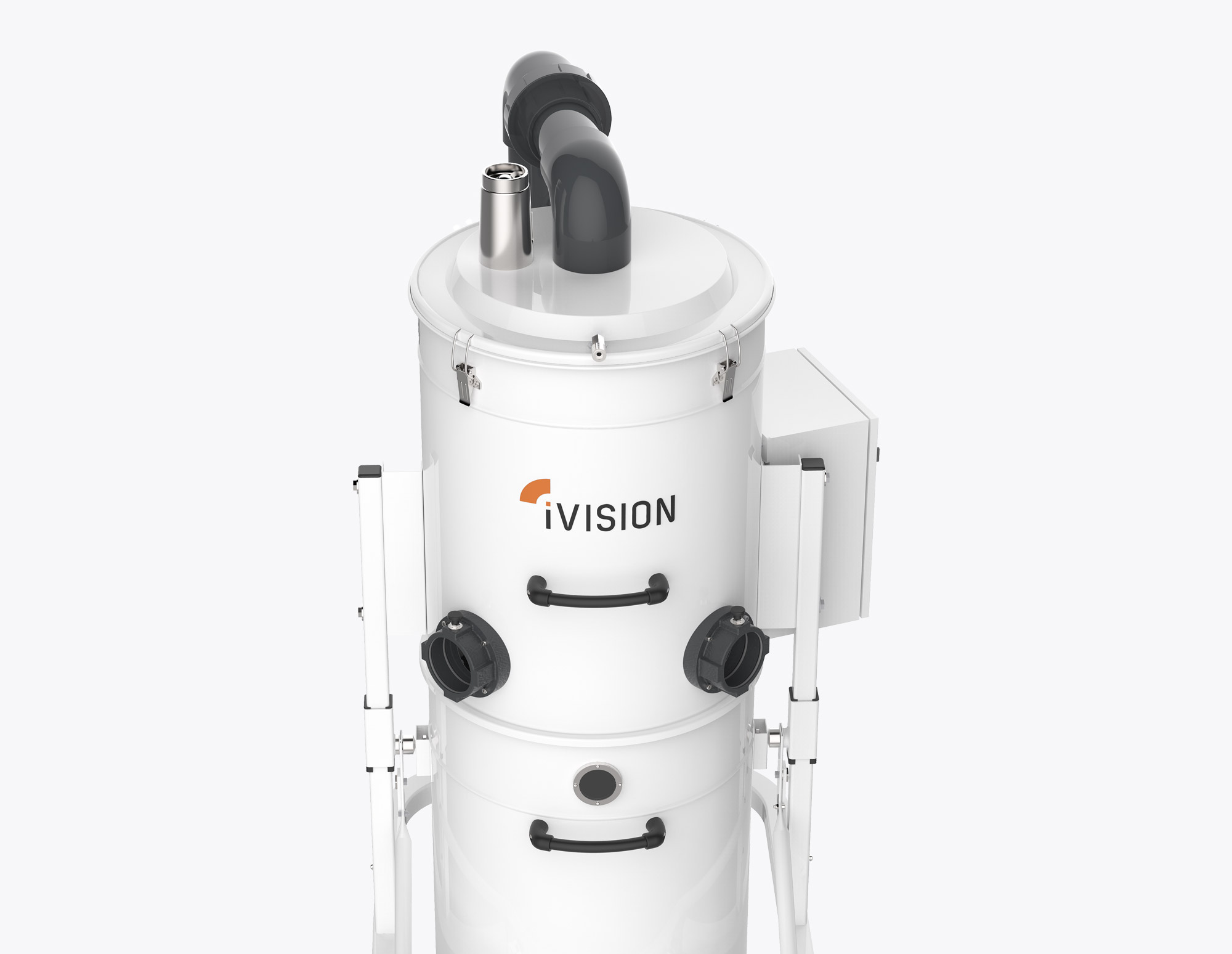

INDUSTRIAL VACUUMS FOR GENERIC CLEANING
The industrial vacuums of the iV3 Clean line are without a doubt the strongest of the wheeled iVision vacuums and are used to carry out important cleaning jobs and to deep-clean large machine tools with large accumulations of residual metals and liquids. They are used for general cleaning of companies and as an integration to machine tools of various types.
Whether they use lathes, saws, or work centers, every metal-mechanical company produces – in large or small quantities- chips, dust or swarf that need to be efficiently collected in order to maintain clean machine tools and offices, but above all in order to safeguard the health of operators. The objective of these industrial vacuums of the Clean iV3 line are the winning weapon to maintain a clean company.
In additional to industrial vacuums with side-channel turbines of the iV3 Clean line, iVision also projected a product of a dedicated series with specific accessories for the metal-mechanical industry that render all of our industrial vacuums ideal and indispensable for any office.
- Silencer mounted as standard
- Visual filling indicator
- Structure completely made of steel
- Oil resistant wheels with parking brake
- Container capacity 160 liters
- Rapid-release container opening
- Pneumatic filter cleaning system through vibrating motor
- Safety valve
- Remote control start & stop
- Possibility of inserting PVC bags for dust collection
- Automatic or semiautomatic filter cleaning system
- Oil/chips separator tank
- Liftkit for container emptying with a forklift
- Touch Screen
- Antistatic kit
- Atex Zone 22
You can also have iVision vacuums with ATEX-Zone 22 certifcation for potentially explosive environments. More info
All of the vacuums of the iV3 Clean line were conceptualized, designed and produced to be at the height of the growing demands of our clients. In the metal-mechanical world the name iVision has now for some time been the synonym of efficiency, technology, and a guarantee of cleanliness.
ACCESSORIES KLEANING KIT Ø 50 mmThe cleaning kit is usable on all of the series and consists of a robust, anti-abrasion tube that ends at the extremities with special zinc-plated steel accessories capable of transporting, without any obstacle, chippings and oil from the machine tool to the vacuum collection tank. The suction tube comes housed inside a support in order to facilitate the movement of the vacuum in the workshop without being an obstable for the operator, it allows the avoidance of leakage of oil during the maneuvers of the vacuum.
ACCESSORIES KLEANING KIT Ø 70 mmThe cleaning kit, usable through the IV3 series, consists of a robust, anti-abrasion tube that ends at the extremities with special zinc-plated steel accessories capable of transporting, without any obstacle, chippings and oil from the machine tool to the vacuum collection tank. The suction tube comes housed inside a support in order to facilitate the movement of the vacuum in the workshop without being an obstable for the operator, it allows the avoidance of leakage of oil during the maneuvers of the vacuum.
HI-TECH VACUUMFor floor cleaning, iVision has developed a specific kit with a fixed brush positioned on the front part of the vacuum with a handle for manuevering.
HI-TECH VACUUMTo be applied to all models of industrial vacuums in production. This kit allows you to unload electrostatic charges accumulated during the collection phase, avoiding transferring them to other machinery or operators. It’s particularly recommended during the working of aluminum, considering the chips of this material can create a potentially explosive atmosphere inside of the tank.
HI-TECH VACUUMFilter cleaning with a pneumatic piston requires being connected to an air adapter from 6-8 bar and via a pressure regulator that can vary the intensity of the sliding of the piston. • To effectively clean the filters mounted inside the vacuum, the vertical piston filter cleaning system was developed. Through a manual selector (semiautomatic solution) or by a timer (automatic version) a pneumatic piston acts from the bottom of the filter, shaking it intensely in a way that ensures that the chips or the dust transferred to the outside of the filter fall into the collection tank, permitting in this way the continued optimal functioning of the filter. • Vertical piston cleaning of the filter is recommended for any type of application, as it significantly improves the cleaning of the filter compared to the vibrating motor standard version. • Vertical piston cleaning of the filter, especially in its automatic version, becomes mandatory in the suctioning of fine dust that can clog the filter rapidly. In the case of large and heavy chips, this system is not mandatory, but for light or volatile material, yes! • The principal advantage of this system comes from the greater efficiency in the incisiveness of the shaking of the filter with a piston. Another advantage is the use of this system in its automatic version, shaking the filter every time that the motor is turned off, eliminating the typical problem of the reliability of the operator, who usually has to remember to turn on the cleaning of the filter.
HI-TECH VACUUMMetallic mesh chips separator from lubrication. This optional accessory allows you to perfectly separate aspirated solid materials from liquid, to facilitate their storage and/or disposal. The chip separator holds the solid material allowing the liquid to deposit to the bottom of the collection tank.
HI-TECH VACUUMThe kit allows the automatic switching on and off of the vacuum cleaner simultaneously with the machine tool when they are connected. This can occur in three different ways: a) The vacuum gets switched on by contact without electricity "potential free contact". b) The vacuum gets switched on with a 24V contact. c) The vacuum gets switched on with a 230V contact.
HI-TECH VACUUMThe lifting device is used for emptying the 100 Lt (iV2 model) or the 160 Lt (iV3 model) chip container with the use of a forklift. The operators do not have to make any effort for the emptying process. At the sides of the collecting containers there are two hooks for the lifting kit to be connected to, which in turn is lifted from the truck by a chain.
HI-TECH VACUUMThe vacuum cleaner is equipped with a touch screen unit on the front. It allows the operator to quickly and easily monitor the level of contamination of the filter. Thanks to such a device, the operator is able to recognize in real time the filter condition and the efficiency of the whole vacuum cleaner. Afterwards, the operator can choose to clean the filter (in manual or automatic mode) and also manage the remote Start&Stop control option. Once the filter is completely clogged, the unit will automatically warn the operator of the need to replace the filter utilizing: • A visual signal
