Industrial vacuum cleaners for CNC machines
Face efficiently the challenges related to industrial CNC suction and etraction with advanced and reliable solutions. Our suction systems for CNC are designed for efficiency, safety and business continuity. Discover our line of industrial chips and dust vacuum cleaners, designed to reduce downtime and improve the safety of your working environment.

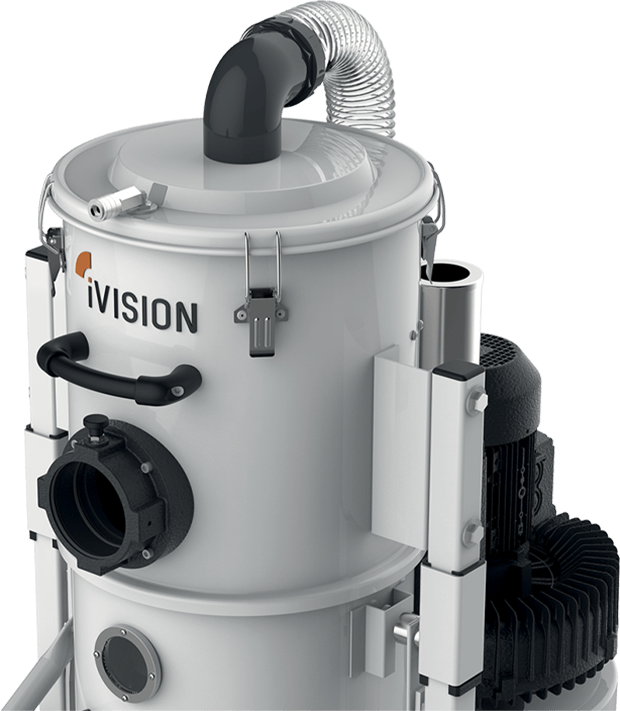

FLAT TABLE line, the benchmark for CNC extraction
The FLAT TABLE line offers an effective advantage in CNC machining: efficient and automated management of chips and dust generated by the production process
- Longer machine life: by preventing the accumulation of chips, it improves the quality of semi-finished products and ensures the proper operation of CNC machines, reducing tool wear and maintenance costs.
- Perfect integration with CNC machines: its versatility allows it to adapt to milling machines, lathes, and machining centers with different suction requirements.
- Safety and cleanliness in the work environment: by removing fine dust and chips, it creates a healthier environment, reducing the risk of accidents and improving compliance with environmental and safety regulations.
- High-efficiency industrial suction: with powerful motors and an advanced filtration system, the FLAT TABLE line provides continuous suction without power loss.
The FLAT TABLE line represents the ultimate solution for the suction needs of CNC machines
Designed to combine power, precision and reliability, it offers a high-performance system capable of handling large volumes of chips and dust generated during industrial machining.
Ideal for the following application sectors
Precision engineering
perfect for high-precision manufacturing processes where component cleaning is essential

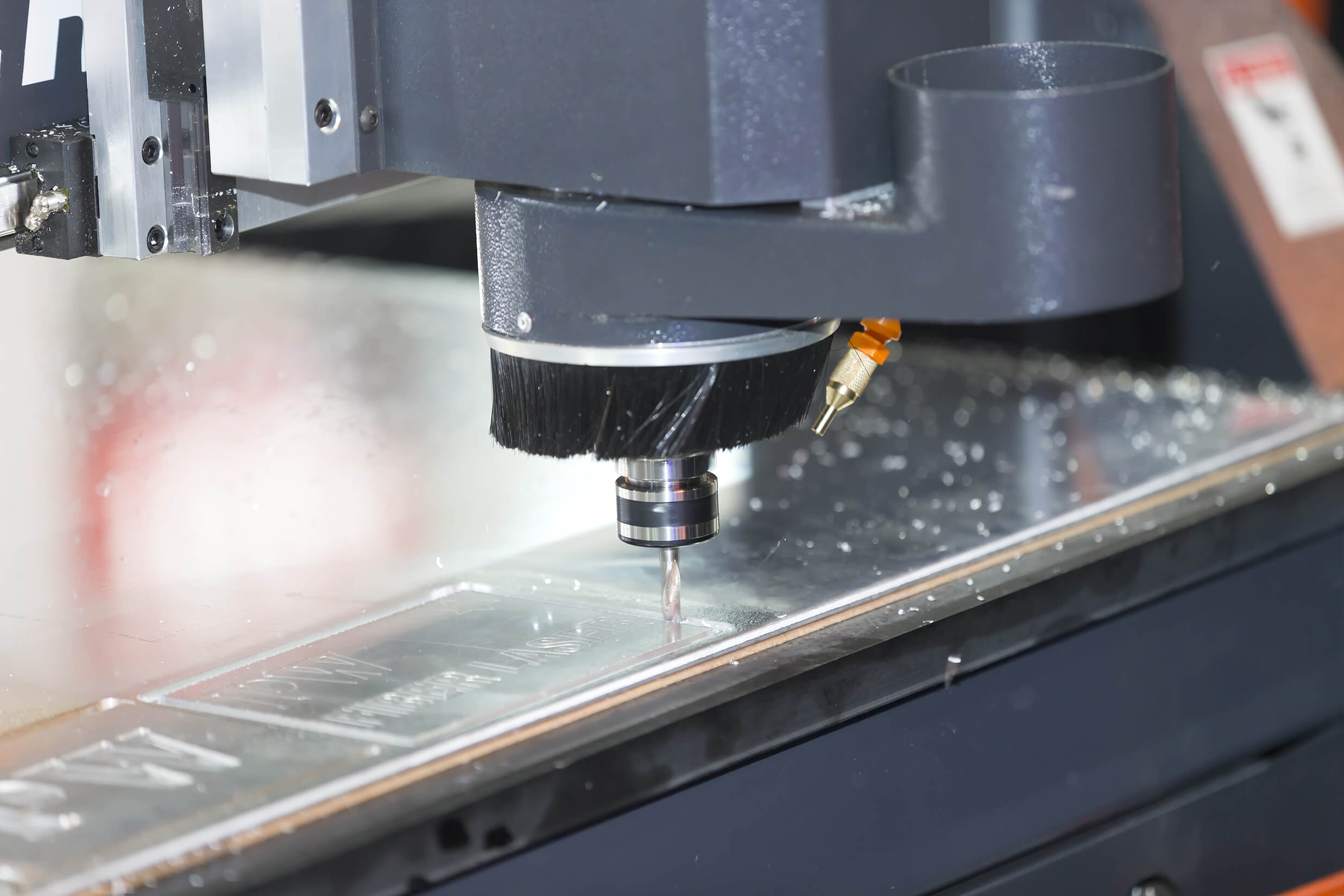

CNC machining
ideal for milling machines, lathes, routers and CNC machines that need fast and effective chips removal
Industrial component manufacturing
supports machining operations that generate large amounts of dust or chips from materials such as metals, light alloys or composite materials
Industries with strict safety and cleaning standards
such as aerospace, automotive, and tool manufacturing, where dust and chip management is critical to avoid contamination and ensure product quality

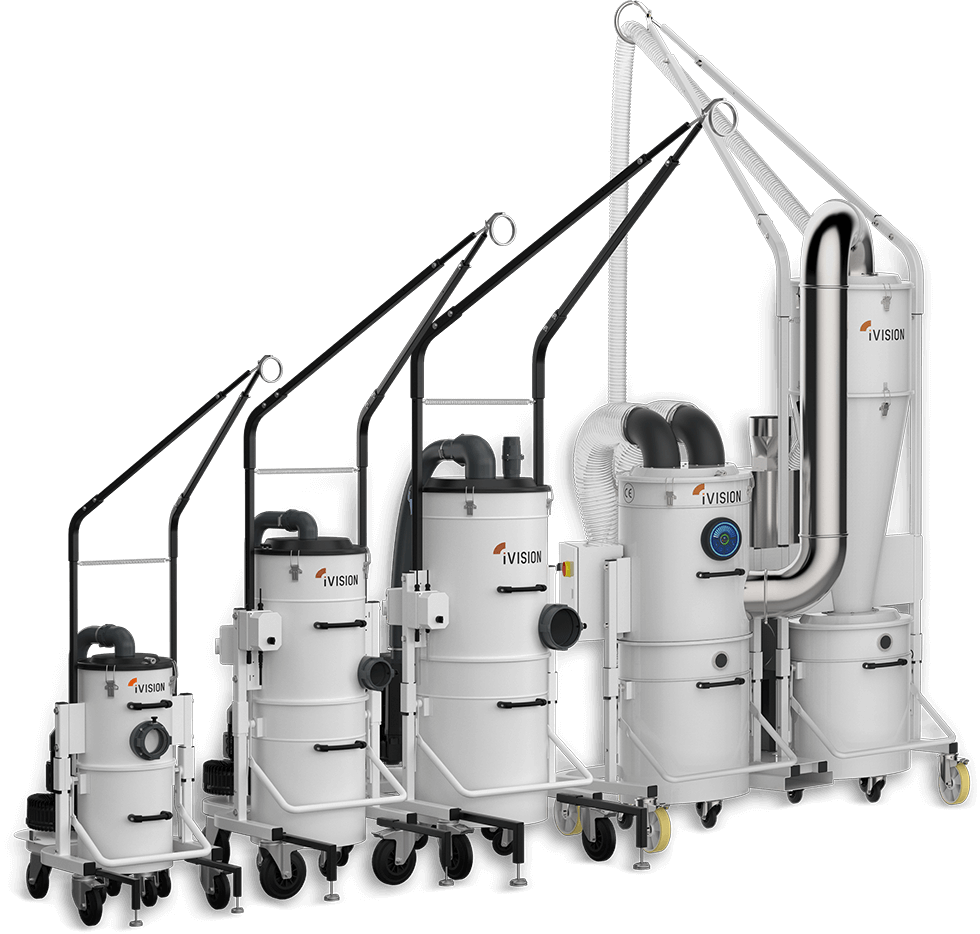

The FLAT TABLE line is distinguished by a number of innovations that make it unique in the world of industrial vacuum cleaners for CNC machines
FLAT TABLE vacuum cleaners, equipped with a side channel blower, are designed for 3-axis CNC machines, both horizontal and vertical. They ensure powerful and targeted suction of machining waste, preventing clogging and reducing production downtime.
With a range of patented accessories, including the aerial arm, the FLAT TABLE line offers a tailor-made solution for every application.

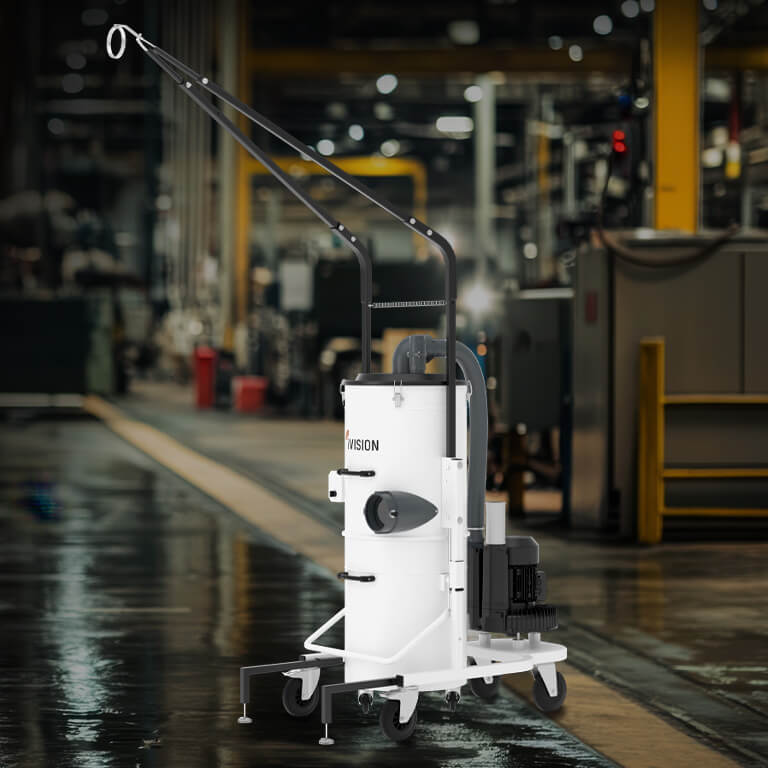

1AERIAL ARM
the FLAT TABLE line’s aerial arm is a structure designed to facilitate the connection between the vacuum cleaner and the CNC machinery, improving suction hose management. Thanks to this solution, air flow remains constant and optimized, avoiding kinks or bottlenecks in the hoses that could reduce suction capacity. In addition, the overhead arm keeps the work area neater and safer, eliminating the risk of clutter on the floor and providing greater freedom of movement for operators.

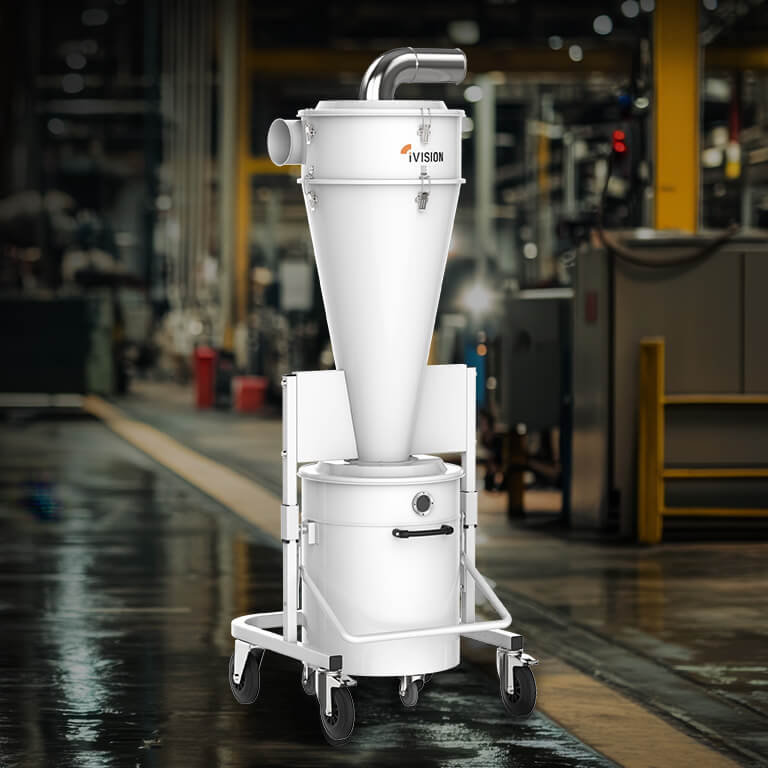

2CYCLONIC PRE-FILTER
The cyclonic pre-filter is a system that improves suction efficiency by separating heavier chips before they reach the main filter. This mechanism extends filter life, reducing the need for frequent maintenance and improving operational continuity. The use of a cyclonic pre-filter enables more than 90% of the sucked material to be captured before it reaches the main filter, thus preventing clogging and greatly extending its life.

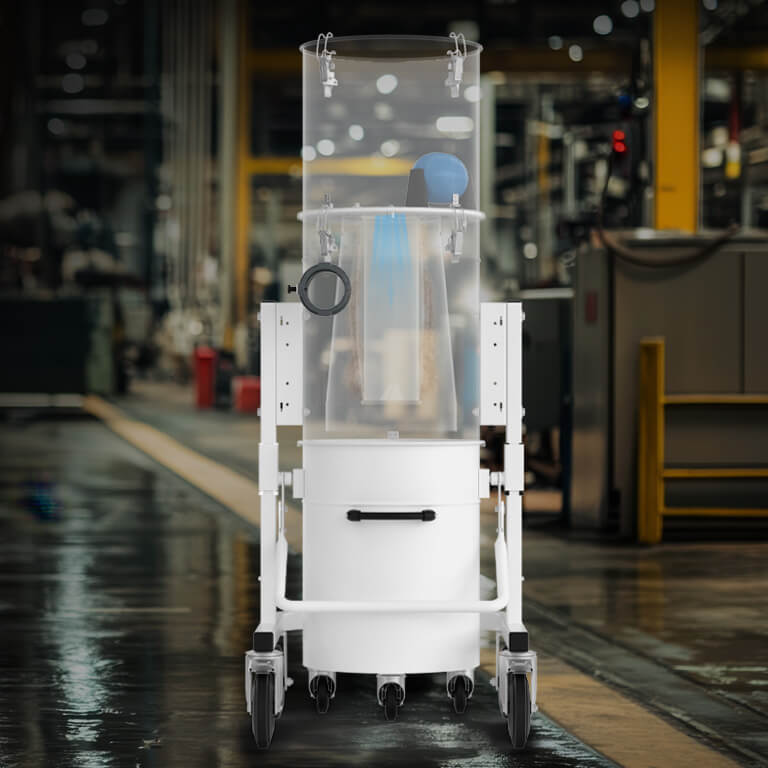

3INTELLIGENT CLEANING
The set-pulse filter cleaning system with clogging sensor ensures optimal efficiency over time, reducing the need for manual maintenance. Automatic filter cleaning system uses counterflow discharges of compressed air to remove dust and particles accumulated on cartridge filters. The clogging sensor detects the level of clogging and automatically calculates the number of setpulses needed. This mechanism prevents filter clogging and ensures suction is always efficient.

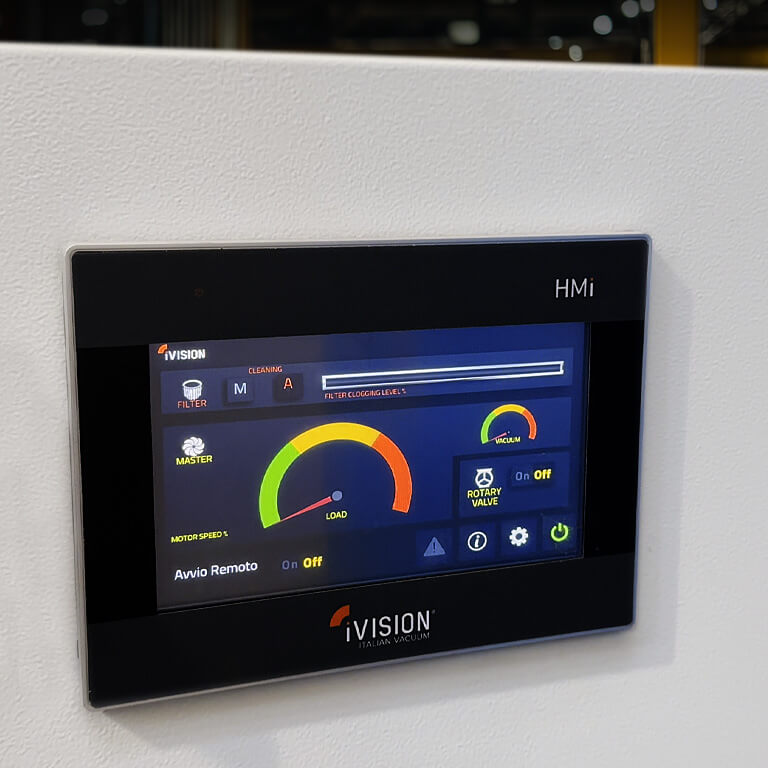

44.0 CONNECTED
4.0 CONNECTED technology is remote monitoring that allows operators to control vacuum cleaner operating parameters from any device connected to the company network. Through an intuitive dashboard, essential data such as filter clogging level, suction performance and motor status can be viewed, preventing malfunctions before they occur. IVision Vacuum, thanks to remote control, can carry out predictive analysis and inform you about maintenance to avoid downtime and breakdowns.
Materials vacuumed by the FLAT TABLE line
Industrial vacuum cleaners from the FLAT TABLE line are designed to efficiently handle chips, dust and machining residues generated by CNC machinery, ensuring a clean working environment, increased production efficiency and optimal machinery protection. Thanks to their suction power and advanced filtration systems, these vacuum cleaners can collect a wide range of materials, including:
Discover the FLAT TABLE vacuum best suited for your production environment.
