SHOES LINE

Industrial Vacuum Cleaner for Dust of Leather & Fabrics

INDUSTRIAL VACUUMS FOR SHOE MANUFACTURING

____________________

The incredibly high level of technology and the growing experience that has always characterized the company, iVision, have brought it to develop a
new range of industrial vacuums with centrifuged fans, dedicated to the sector of shoe working. In particular, the vacuums of the Shoes line are perfectly suited for all machines that cut, brush, sand, or generally produce chips in large quantities that need to be cleaned.
The line dedicated to this sector is particularly versatile and complete; it includes vacuums for small offices to complex and powerful systems for large companies, offering our clients a large selection in order to satisfy every type of demand.

THE MOST INNOVATIVE VACUUMS FOR DUST

____________________

The shoes line was born after extensive experience in the shoe manufacturing business, including the processing of fabrics and leathers, in order to meet the growing needs of collecting dust generated during processing.
Every vacuum of the Shoes line is equipped with an M Class filter, a filter of high quality created specifically for the Shoes line that allows the retention of at least 99.9% of particles collected. Thanks to the innovations of the Shoes line, the maintenance of your machinery will be drastically reduced in terms of time and costs compared to traditional methods.

VACUUMS FOR DUST
DEDICATED TO THE SHOE
MANUFACTURING BUSINESS

In order to meet your needs, the containers
for chip collecting can be of various capacities. Starting from the smallest models, compact and manageable for quick and easy moving for emptying, to the biggest collection containers up to 2X160 Liters for the more heavy-duty work.
The entire Shoes range comes with high efficient, polyester M Class filters. In the vacuums with bigger dimensions the cyclonic pre-filter has the goal of elongating the life of the filter, reducing the cost of maintenance and at the same time, safeguarding the health of the Operators.

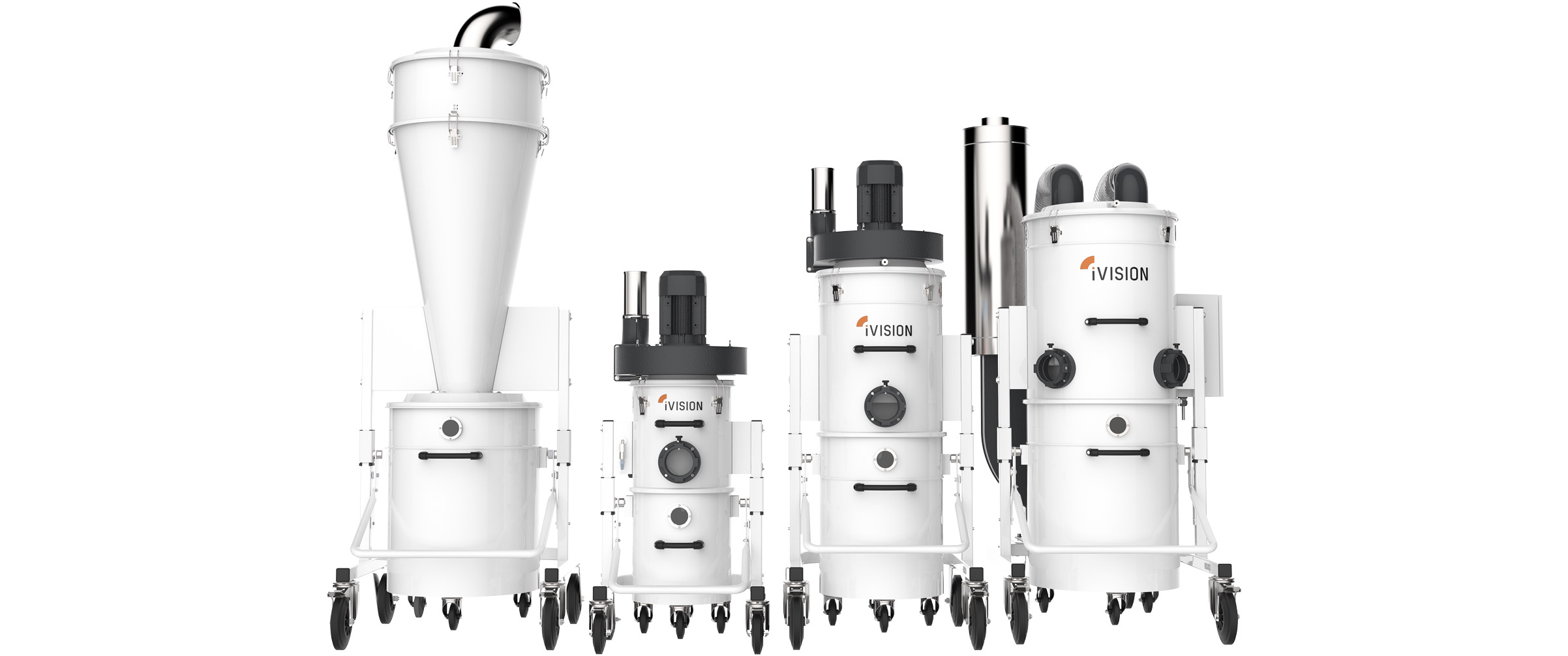

SHOES LINE PRODUCTS

____________________

  • iv1-extrusion-line-industrial-vacuum-cleaners-ivision-vacuum-f
    iv1-extrusion-line-industrial-vacuum-cleaners-ivision-vacuum-f

    iV1 SHOES

    INDUSTRIAL VACUUM CLEANER FOR DUST OF LEATHER & FABRICS

    The vacuums of the iV1 Shoes line are the iVision industrial vacuums that are the smallest and most compact. They are highly efficient systems and at the same time rational and silent, that are utilized in the shoe manufacturing world for the industrial collection of chips and dust generated from grinding and sanding machines with a low production of chips and dust. Thanks to the products’ small dimensions, that presents, however, as robust and solid, the industrial vacuums of the iV1 Shoes line perform perfectly with the utilization of shoe manufacturing machines, guaranteeing an excellent standard of quality. [sf_button colour="accent" type="rounded bordered" size="standard" link="http://ivisionvacuum.com/contact/quotation/" target="_self" icon="sf-im-testimonal" dropshadow="no" extraclass="ml0"]REQUEST A FREE QUOTATION[/sf_button]
  • iv2-extrusion-line-industrial-vacuum-cleaners-ivision-vacuum-f
    iv2-extrusion-line-industrial-vacuum-cleaners-ivision-vacuum-f

    iV2 SHOES

    INDUSTRIAL VACUUM CLEANER FOR DUST OF LEATHER & FABRICS

    The vacuums of the iV2 Shoes line are the models with medium-sized dimensions and are used side-by-side of shoe-manufacturing machines that produce a medium amount of chips. These industrial vacuums are extremely versatile and their ideal application is with shoe manufacturers or in general in companies that work with fabrics and leather. The huge amount of care given to design and the creation of the vacuums of the iV2 Shoes line that are composed of robust materials characterize the iVision industrial vacuums with centrifugal fans. iVision has established itself over the years in the world of footwear and is now recognized as a leader for reliability, quality, efficiency and innovation. [sf_button colour="accent" type="rounded bordered" size="standard" link="http://ivisionvacuum.com/contact/quotation/" target="_self" icon="sf-im-testimonal" dropshadow="no" extraclass="ml0"]REQUEST A FREE QUOTATION[/sf_button]
  • iv3-shoes-line-ventola-dietro-industrial-vacuum-cleaners-ivision-vacuum-f
    iv3-shoes-line-ventola-dietro-industrial-vacuum-cleaners-ivision-vacuum-f

    iV3 SHOES

    INDUSTRIAL VACUUM CLEANER FOR DUST OF LEATHER & FABRICS

    The vacuums of the iV3 Shoes line are the iVision industrial vacuums most sold in the world of shoe manufacturing. They are an excellent system used in the world of shoe manufacturing for the industrial collection of chips and dust. The vacuums of the IV3 shoes line cover all of the demands of material collection from machine tools in the world of shoe producing and the working with fabrics and leathers combining the care and attention to design simple and robust materials. [sf_button colour="accent" type="rounded bordered" size="standard" link="http://ivisionvacuum.com/contact/quotation/" target="_self" icon="sf-im-testimonal" dropshadow="no" extraclass="ml0"]REQUEST A FREE QUOTATION[/sf_button]
  • iv-custom-shoes-line-industrial-vacuum-cleaners-ivision-vacuum
    iv-custom-shoes-line-industrial-vacuum-cleaners-ivision-vacuum

    iV CUSTOM SHOES

    INDUSTRIAL VACUUM CLEANER FOR DUST OF LEATHER & FABRICS

    The vacuums of the iV Custom Shoes line were born from a long experience in the shoe manufacturing sector, in order to give an innovative and technological response to the growing need of the collection of chips and dust generated from the working of shoes. Every vacuum of the iV Custom Shoes line is equipped with an M-class filter, a filter of high quality and efficiency, created purposely for this sector, that allows the collection of at least 99.9% of materials. Thanks to the innovations applied to the vacuums of the iVCustom Shoes line, the ordinary and extraordinary maintenance of your machine tools becomes increasing faster, simple, and economical. [sf_button colour="accent" type="rounded bordered" size="standard" link="http://ivisionvacuum.com/contact/quotation/" target="_self" icon="sf-im-testimonal" dropshadow="no" extraclass="ml0"]REQUEST A FREE QUOTATION[/sf_button]

THE PRINCIPAL ADVANTAGES

____________________

The main advantages of the Shoes line are:

  • Automatic and semiautomatic filter cleaning
  • Touch Screen in order to easily recognize the level of filter contamination
  • Pneumatic gate closure with a pedal in order to work simultaneously with more machines
  • Cyclonic pre-filter for the pre-separation of materials that allows further duration of the main filter life
  • Possibility of remote control
  • Large range of accessories dedicated to every need of the sector
  • TAnti-fire system purposely studied for this sector
  • touch-industrial-vacuum-cleaners-ivision-vacuum
    touch-industrial-vacuum-cleaners-ivision-vacuum

    TOUCH SCREEN

    HI-TECH VACUUM

    The vacuum cleaner is equipped with a touch screen unit on the front. It allows the operator to quickly and easily monitor the level of contamination of the filter. Thanks to such a device, the operator is able to recognize in real time the filter condition and the efficiency of the whole vacuum cleaner. Afterwards, the operator can choose to clean the filter (in manual or automatic mode) and also manage the remote Start&Stop control option. Once the filter is completely clogged, the unit will automatically warn the operator of the need to replace the filter utilizing: • A visual signal
  • cyclonic-prefilte-industrial-vacuum-cleaners-ivision-vacuum-160l
    cyclonic-prefilter-industrial-vacuum-cleaners-ivision-vacuum-1000l

    CYCLONIC PREFILTER

    HI-TECH VACUUM

    Strongly recommended whenever possible, the pre-filter is positioned between the vacuum and the chip-generating machine, as the first point of collection of the collected material. It is specially used to preserve the life of the filter inside the vacuum unit. It retains most of the collected material and can have a cone or cylindric shape and serves as a mechanical filter. Through a tangential entry the collected material is centrifuged into its interior until its speed gradually decreases and the material gradually falls to the bottom of the collecting unit due to the force of gravity. Such a process ensures that only a relatively low percentage of collected dust or chips manages to actually reach the real filter positioned in the upper part of the vacuum cleaner. The cyclonic pre-filter can be combined with a: • 160 L tank • 500 L tank • 1000 L tank The cyclonic pre-filter becomes almost mandatory for fine or very fine powders, which are very likely to clog the filter quickly, compromising the smooth operation of the entire system, but are only recommended for large, heavy chips. The main advantage of the cyclonic pre-filter is to protect the filter of the vacuum cleaner from quickly clogging, thus extending its life before replacement and significantly reducing the maintenance of the entire system.
  • gate-closure-industrial-vacuum-cleaners-ivision-vacuum
    gate-closure-industrial-vacuum-cleaners-ivision-vacuum

    GATE CLOSURE

    HI-TECH VACUUM

    The gate valves that enable the closure of multiple vents allow the operator to choose to work with one, two or more hoses simultaneously. These gates can be operated manually by operators, handled automatically by machines, or remotely via foot pedal.
  • remote-start-stop-industrial-vacuum-cleaners-ivision-vacuum
    remote-start-stop-industrial-vacuum-cleaners-ivision-vacuum

    REMOTE START & STOP

    HI-TECH VACUUM

    The kit allows the automatic switching on and off of the vacuum cleaner simultaneously with the machine tool when they are connected. This can occur in three different ways: a) The vacuum gets switched on by contact without electricity "potential free contact". b) The vacuum gets switched on with a 24V contact. c) The vacuum gets switched on with a 230V contact.
  • automatic-cleaning-whit-shaking-industrial-vacuum-cleaners-ivision-vacuum
    automatic-cleaning-whit-shaking-industrial-vacuum-cleaners-ivision-vacuum

    AUTOMATIC CLEANING WITH SHAKING

    HI-TECH VACUUM

    Filter cleaning with a pneumatic piston requires being connected to an air adapter from 6-8 bar and via a pressure regulator that can vary the intensity of the sliding of the piston. • To effectively clean the filters mounted inside the vacuum, the vertical piston filter cleaning system was developed. Through a manual selector (semiautomatic solution) or by a timer (automatic version) a pneumatic piston acts from the bottom of the filter, shaking it intensely in a way that ensures that the chips or the dust transferred to the outside of the filter fall into the collection tank, permitting in this way the continued optimal functioning of the filter. • Vertical piston cleaning of the filter is recommended for any type of application, as it significantly improves the cleaning of the filter compared to the vibrating motor standard version. • Vertical piston cleaning of the filter, especially in its automatic version, becomes mandatory in the suctioning of fine dust that can clog the filter rapidly. In the case of large and heavy chips, this system is not mandatory, but for light or volatile material, yes! • The principal advantage of this system comes from the greater efficiency in the incisiveness of the shaking of the filter with a piston. Another advantage is the use of this system in its automatic version, shaking the filter every time that the motor is turned off, eliminating the typical problem of the reliability of the operator, who usually has to remember to turn on the cleaning of the filter.
  • anti-fire-kit-industrial-vacuum-cleaners-ivision-vacuum
    anti-fire-kit-industrial-vacuum-cleaners-ivision-vacuum

    ANTI-FIRE KIT

    HI-TECH VACUUM

    This accessory is a device that automatically intervenes in the case that there is a consistent increase of the temperature inside of the collection tank, emptying a mix of air and water inside the tank through a spray nozzle. In the case where the system is not automatically activated, it's possible to activate it manually using the appropriate button.
  • antistatic-kit-industrial-vacuum-cleaners-ivision-vacuum-p2
    antistatic-kit-industrial-vacuum-cleaners-ivision-vacuum-p2

    ANTISTATIC KIT

    HI-TECH VACUUM

    To be applied to all models of industrial vacuums in production. This kit allows you to unload electrostatic charges accumulated during the collection phase, avoiding transferring them to other machinery or operators. It’s particularly recommended during the working of aluminum, considering the chips of this material can create a potentially explosive atmosphere inside of the tank.
  • kleaning-kit-70mm-industrial-vacuum-cleaners-ivision-vacuum
    kleaning-kit-70mm-industrial-vacuum-cleaners-ivision-vacuum

    CLEANING KIT Ø 70 mm

    ACCESSORIES KLEANING KIT Ø 70 mm

    The cleaning kit, usable through the IV3 series, consists of a robust, anti-abrasion tube that ends at the extremities with special zinc-plated steel accessories capable of transporting, without any obstacle, chippings and oil from the machine tool to the vacuum collection tank. The suction tube comes housed inside a support in order to facilitate the movement of the vacuum in the workshop without being an obstable for the operator, it allows the avoidance of leakage of oil during the maneuvers of the vacuum.
  • kleaning-kit-50mm-industrial-vacuum-cleaners-ivision-vacuum
    kleaning-kit-50mm-industrial-vacuum-cleaners-ivision-vacuum

    CLEANING KIT Ø 50 mm

    ACCESSORIES KLEANING KIT Ø 50 mm

    The cleaning kit is usable on all of the series and consists of a robust, anti-abrasion tube that ends at the extremities with special zinc-plated steel accessories capable of transporting, without any obstacle, chippings and oil from the machine tool to the vacuum collection tank. The suction tube comes housed inside a support in order to facilitate the movement of the vacuum in the workshop without being an obstable for the operator, it allows the avoidance of leakage of oil during the maneuvers of the vacuum.

ivision-vacuum-accessories

ACCESSORIES
Industrial Vacuum Cleaner Accessories

cover-brochure-shoes-line-ivision-vacuum

pdf-icon-brochure

BROCHURE
SHOES LINE

Don’t hesitate to contact us for a specialized quotation, we know how to guide you towards the product most adapt to your demands.

iVision, the best industrial material collection!
