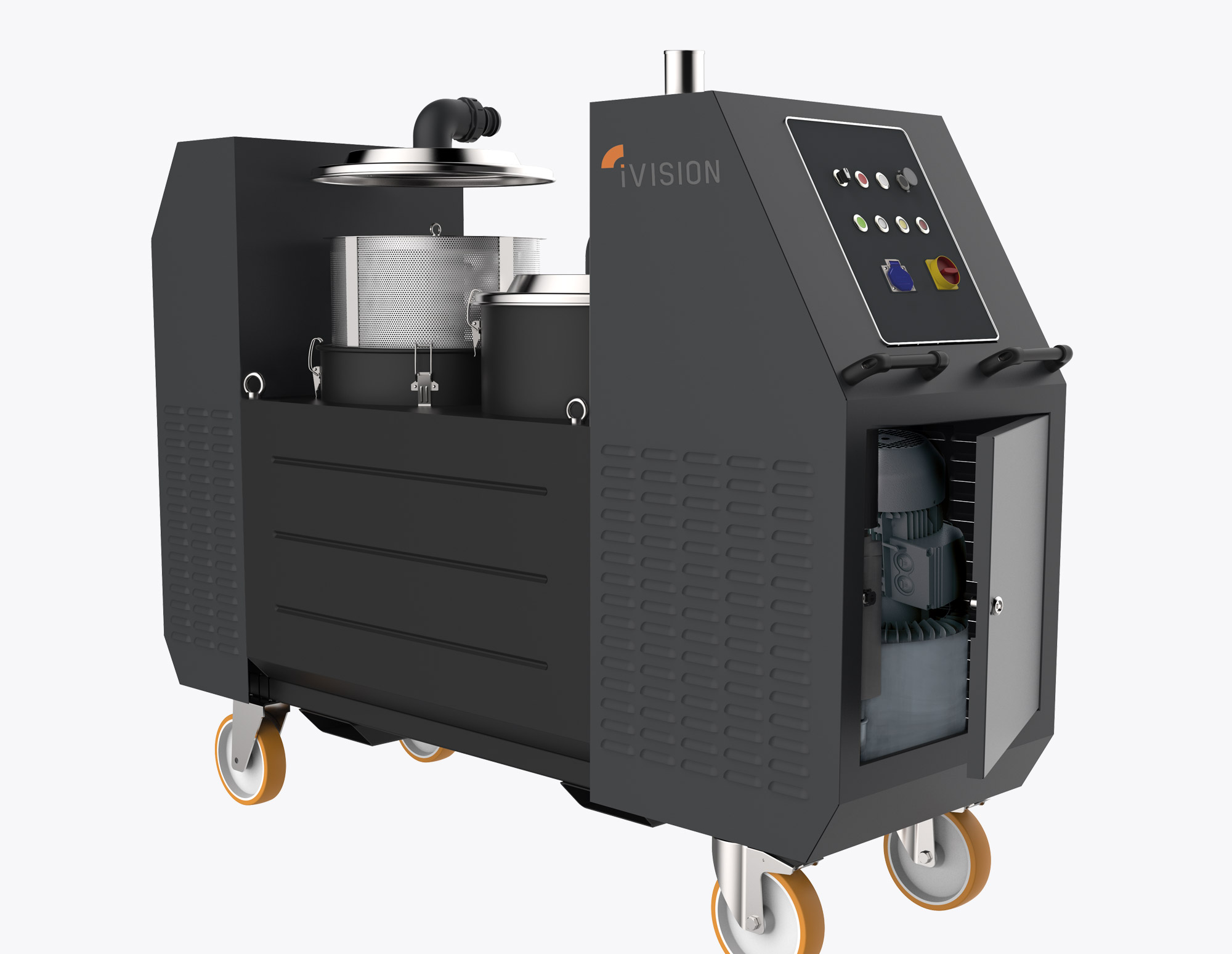

INDUSTRIAL VACUUM CLEANERS FOR SEPARATING OIL AND METAL CHIP
The vacuums from the iV4 Emulsio line are the most powerful industrial vacuums and efficient for the collection of chips and liquids from milling machines, lathes, or CNC work centers. Thanks to the powerful dual-stage side-channel turbine and to the spacious collection tank, the vacuums from the iV4 Emulsio line are ideal for combatting the time necessary it takes in order to empty large tanks and the relative reintroduction through an independent electric pump from 400 L / min. With this range of industrial vacuums, iVision has achieved excellent performance levels and a grade of technology with flexibility to satisfy even the most demanding needs of clients in the metal machinery industrial. The novelty of design produced by the vacuums of the iV4 Emulsio line, with their characteristic robustness and flexibility, have become a reference point in the sector of industrial vacuums for metal chips and liquids.REQUEST A FREE QUOTATION
- Side-channel, dual-stage turbine
- Security valve vacuum-break
- Visual filling indicator
- Oil-resistant wheels with parking brake
- Polyester filter
- Automatic separation of chips and liquid
- Liquid container capacity: 400-700
- Chips container capacity: 40 Lt
- Predisposition for lifting with a forklift

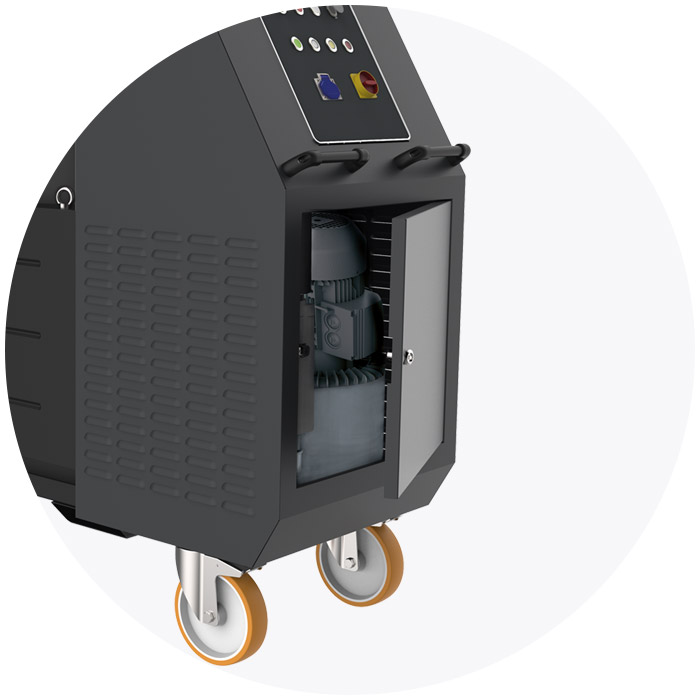

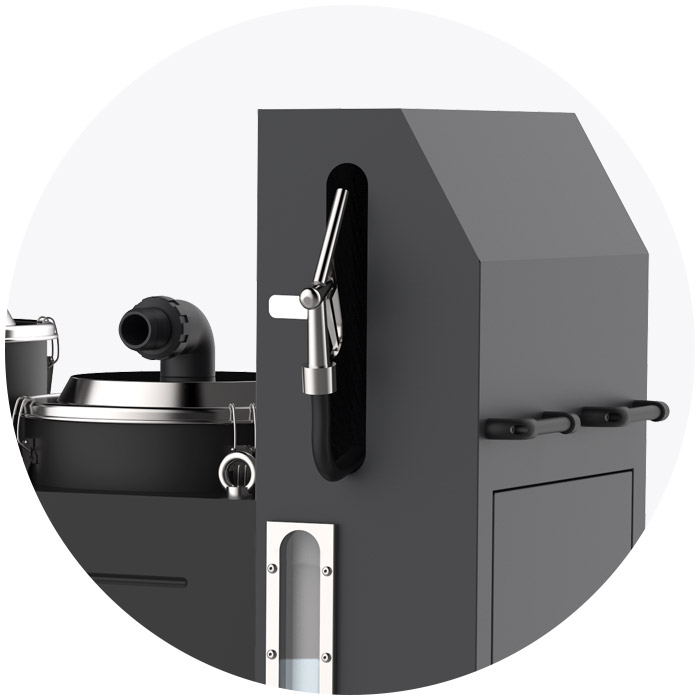

- Independent, electric pump with ergonomic nozzle
- Remote control
- Possibility of filtering of suctioned materials from 300 to 6 micron/li>
- Wrap nozzle hose, power cord storage
How to use the iV4 Emulsio – loading / emptying of liquids
The IV4 is the most powerful unit in the Emulsio line. It is able to collect and separate from liquids large quantities of chips from milling machines, lathes and CNC machining centers.
Every single vacuum of the iV4 Emulsio series has as its goal to satisfy to the maximum the always-growing demands of clients, looking to create an ideal product and work side by side of machinery that work with heavy metals.
HI-TECH VACUUMThe kit allows the automatic switching on and off of the vacuum cleaner simultaneously with the machine tool when they are connected. This can occur in three different ways: a) The vacuum gets switched on by contact without electricity "potential free contact". b) The vacuum gets switched on with a 24V contact. c) The vacuum gets switched on with a 230V contact.
