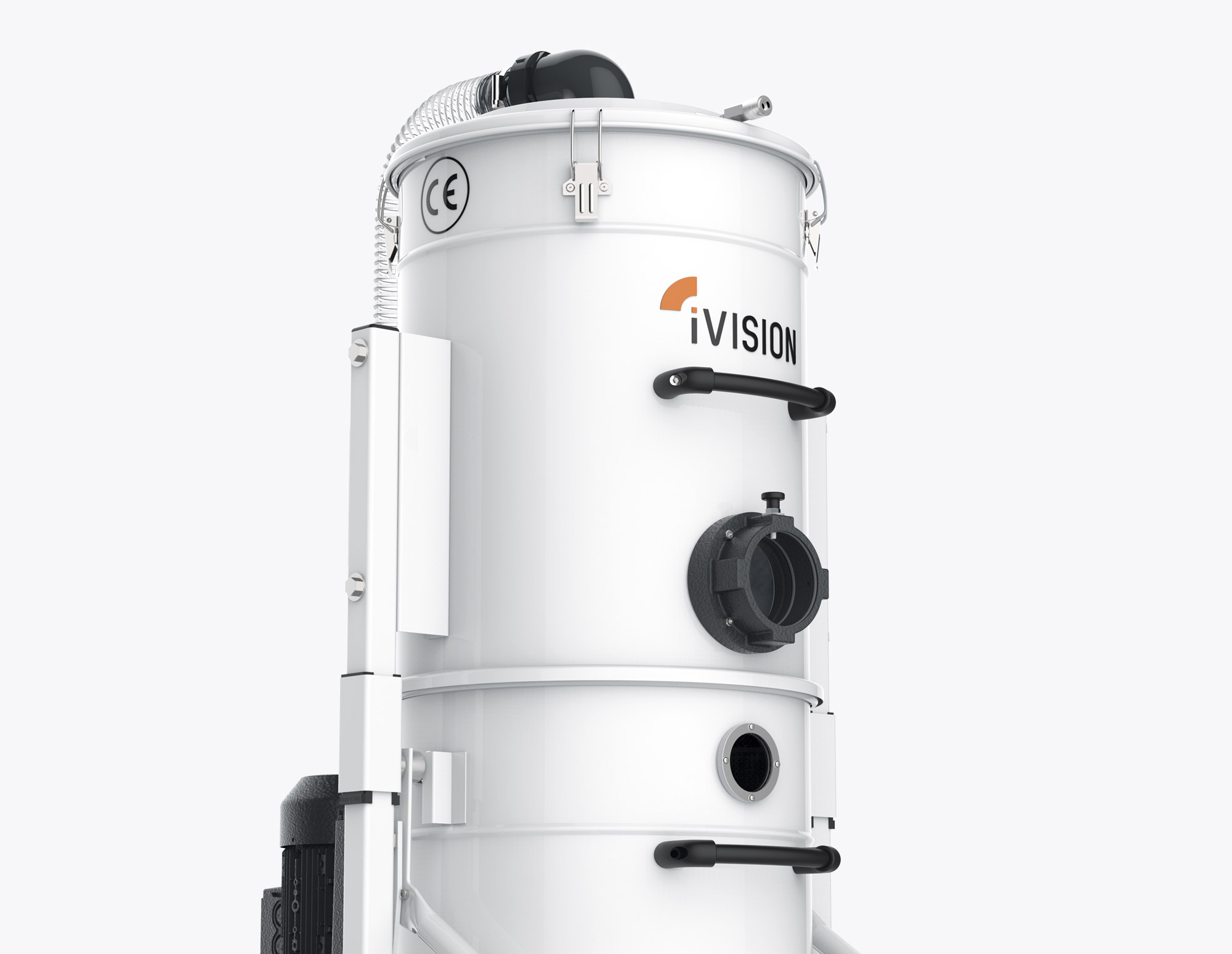

INDUSTRIAL VACUUM CLEANERS FOR SAND
The industrial vacuums of the iV2 Sand line are used to collect dust and grit from sand in industrial environments where professional and efficient collection is needed to maintain a clean and healthy work environment for operators. iVision with this in mind has developed a range of industrial dust collection models with a side-channel turbine, dedicated to the world of industrial sandblasting. Besides the 100-liter collection capacity, the industrial vacuums of the iV2 Sand line permit the operator to move with agility in restricted spaces. The objective of an efficient industrial collection should be in the first place to safeguard the health of operators and to render the work done more efficient. For this exact reason the dust and grit generated from sandblasting need an industrial collection particularly efficient and constant; this is made possible by the industrial vacuums of the iV2 Sand line of iVision.
In addition to the large range of wheeled industrial vacuums with side channel turbines, iVision has created and patented many accessories dedicated to the sandblasting world, specifically for the iV2 Sand line, that make every sandblaster capable of using a custom product for their needs.
The low noise level and the ease of maintenance distinguishes iVision for its design and use of Italian components.

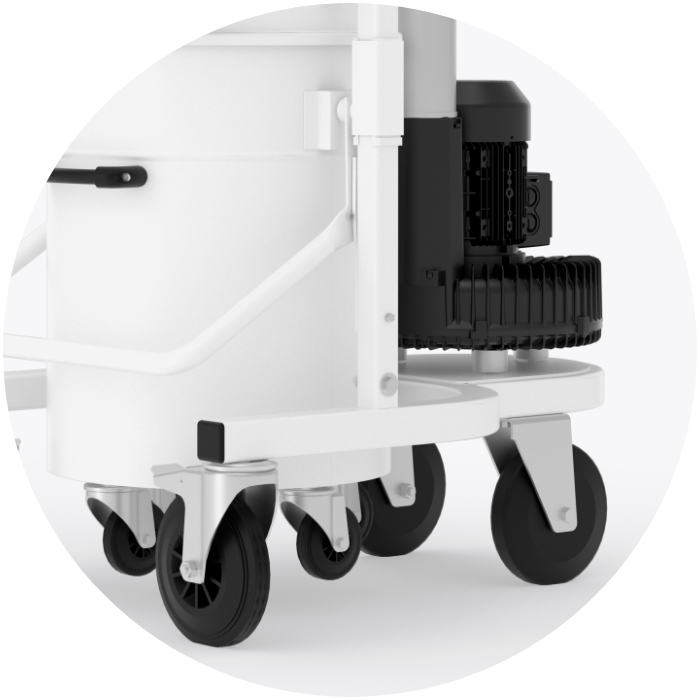

- Side channel turbine
- Visual filling indicator
- Structure completely made of steel
- Anti-scuff, turning wheels with parking brake
- Container capacity 100 liters/li>
- Rapid-release container
- Silencer to respect noise regulation
- Remote control
- PVC bag kit for chip collection
- Automatic and semiautomatic filter cleaning systems
- Antistatic kit
- Atex Zone 22
You can also have iVision vacuums with ATEX-Zone 22 certifcation for potentially explosive environments. More info
All of our vacuums of the iV2 sand line were created to meet the constantly growing demands of our clients. In the industrial sandblasting world the name iVision is becoming a synonym with high quality and efficiency.
HI-TECH VACUUMFor office or the work environment at the end of the day cleaning, iVision has developed a cleaning kit particularly robust dedicated to the sandblasting world. This version can be enlarged according to the specific needs of the client and can be easily attached through special supports on the side of the vacuum, this also helps avoid the tube from impeding the vacuum movement.
HI-TECH VACUUMTo be applied to all models of industrial vacuums in production. This kit allows you to unload electrostatic charges accumulated during the collection phase, avoiding transferring them to other machinery or operators. It’s particularly recommended during the working of aluminum, considering the chips of this material can create a potentially explosive atmosphere inside of the tank.
HI-TECH VACUUMThis is a sieve made of a perforated sheet that allows, during suction, to retain the residue generated during blasting oprations and in general dirt. It has two comfortable handles the permit the removal of the container and the repositioning after having emptying the container.
HI-TECH VACUUMFilter cleaning with a pneumatic piston requires being connected to an air adapter from 6-8 bar and via a pressure regulator that can vary the intensity of the sliding of the piston. • To effectively clean the filters mounted inside the vacuum, the vertical piston filter cleaning system was developed. Through a manual selector (semiautomatic solution) or by a timer (automatic version) a pneumatic piston acts from the bottom of the filter, shaking it intensely in a way that ensures that the chips or the dust transferred to the outside of the filter fall into the collection tank, permitting in this way the continued optimal functioning of the filter. • Vertical piston cleaning of the filter is recommended for any type of application, as it significantly improves the cleaning of the filter compared to the vibrating motor standard version. • Vertical piston cleaning of the filter, especially in its automatic version, becomes mandatory in the suctioning of fine dust that can clog the filter rapidly. In the case of large and heavy chips, this system is not mandatory, but for light or volatile material, yes! • The principal advantage of this system comes from the greater efficiency in the incisiveness of the shaking of the filter with a piston. Another advantage is the use of this system in its automatic version, shaking the filter every time that the motor is turned off, eliminating the typical problem of the reliability of the operator, who usually has to remember to turn on the cleaning of the filter.
HI-TECH VACUUMFor those that need a continuous work cycle in construction environments and need to empty without interrupting work due to turning off the vacuum to empty the collection container, the iVision rotary valve kit is an interesting solution.
HI-TECH VACUUMThe kit allows the automatic switching on and off of the vacuum cleaner simultaneously with the machine tool when they are connected. This can occur in three different ways: a) The vacuum gets switched on by contact without electricity "potential free contact". b) The vacuum gets switched on with a 24V contact. c) The vacuum gets switched on with a 230V contact.
HI-TECH VACUUMThe lifting device is used for emptying the 100 Lt (iV2 model) or the 160 Lt (iV3 model) chip container with the use of a forklift. The operators do not have to make any effort for the emptying process. At the sides of the collecting containers there are two hooks for the lifting kit to be connected to, which in turn is lifted from the truck by a chain.
HI-TECH VACUUMThe vacuum cleaner is equipped with a touch screen unit on the front. It allows the operator to quickly and easily monitor the level of contamination of the filter. Thanks to such a device, the operator is able to recognize in real time the filter condition and the efficiency of the whole vacuum cleaner. Afterwards, the operator can choose to clean the filter (in manual or automatic mode) and also manage the remote Start&Stop control option. Once the filter is completely clogged, the unit will automatically warn the operator of the need to replace the filter utilizing: • A visual signal
