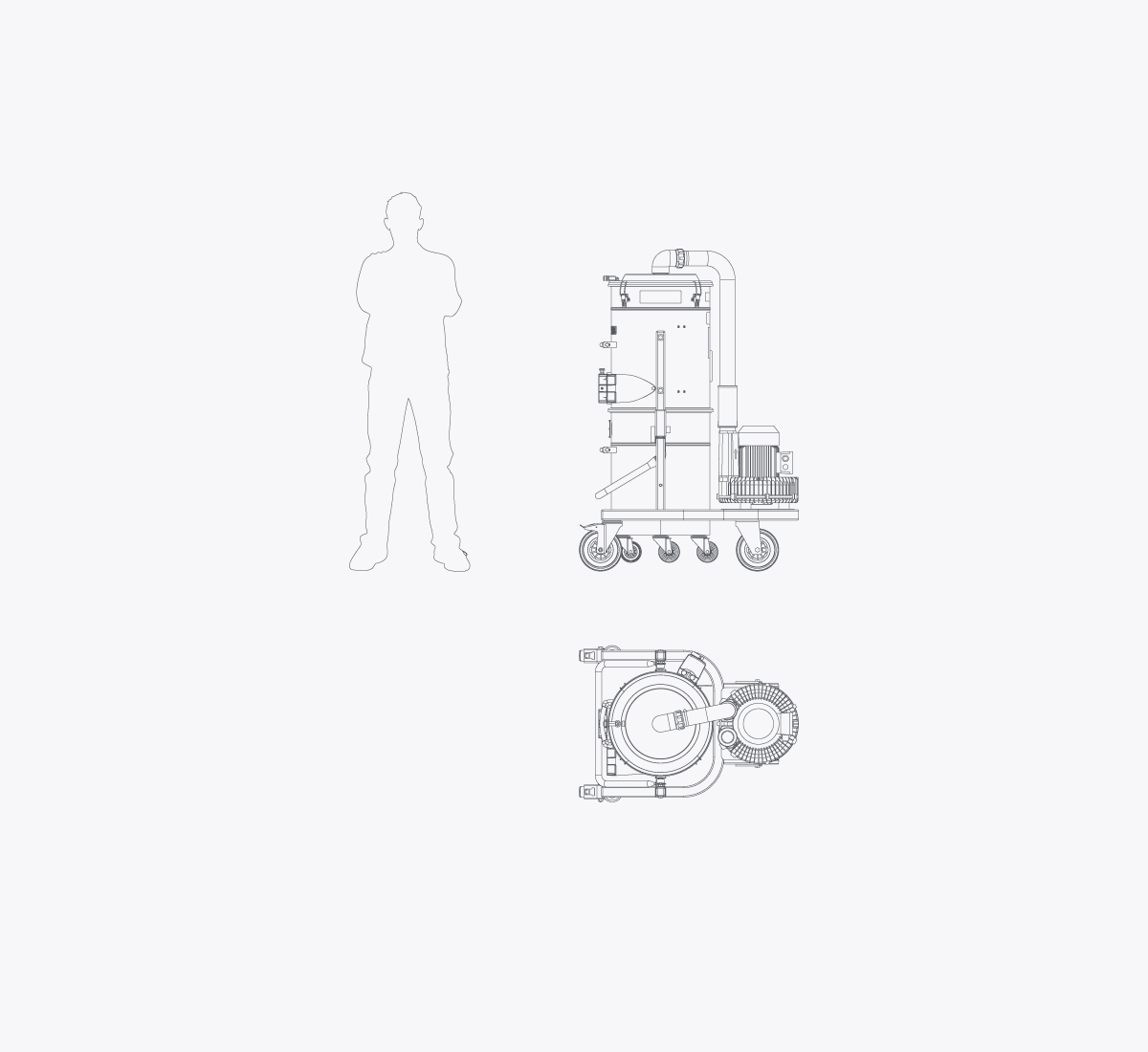

iV2 FLAT TABLE
INDUSTRIAL VACUUM CLEANERS FOR CHIP ON CNC ROUTER

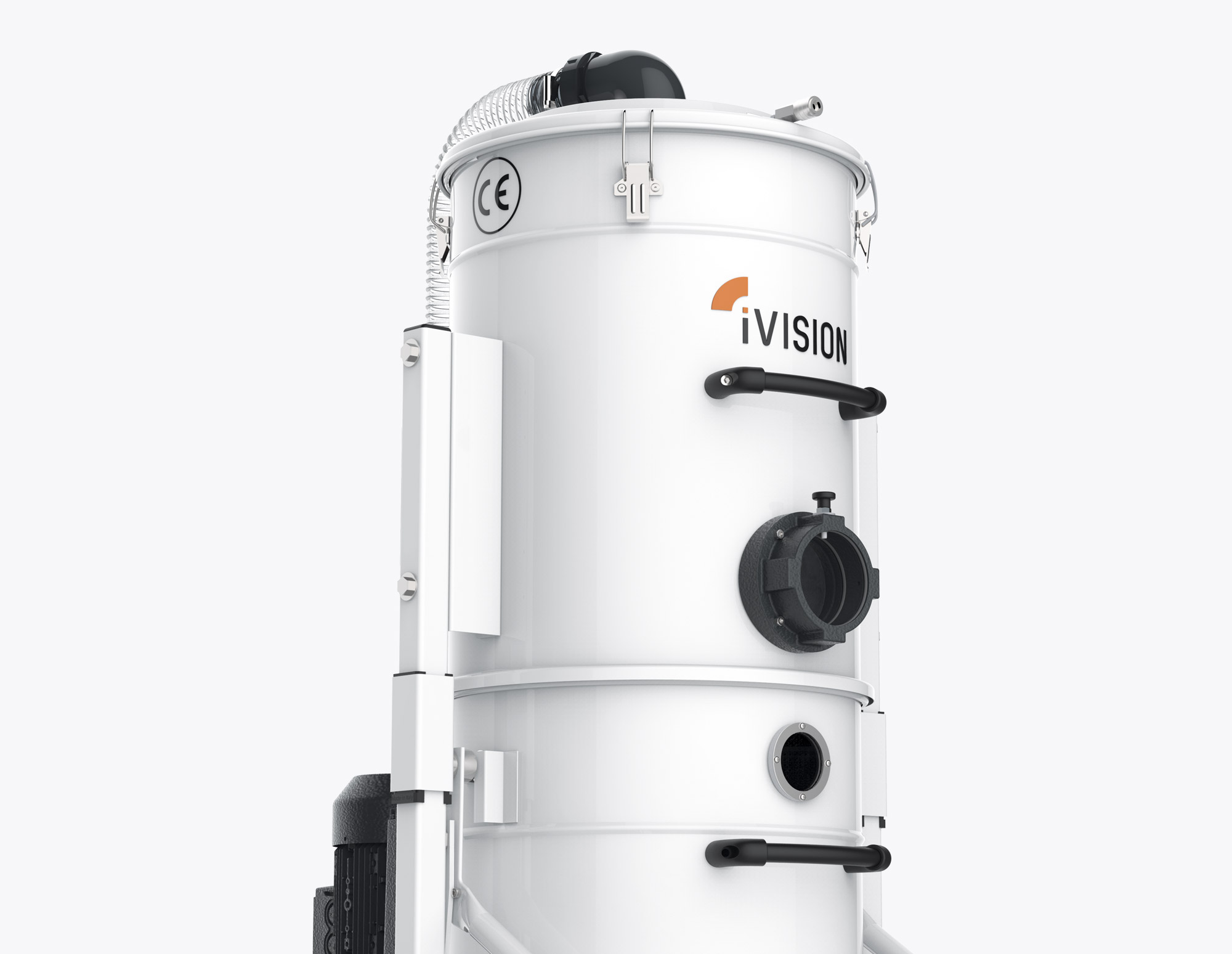

IV2 FLAT line vacuum cleaners are the best-selling models among iVision industrial vacuums. These industrial vacuum cleaners with side-channel turbines are used in the world of panel processing. The scraps generated on a 3-axis milling machines require industrial chip aspiration as efficient as possible to ensure the correct working of the machine tool. In addition to the wide range of vacuum cleaners with side-channel turbines, iVision is able to meet the demands of its customers thanks to the specific accessories created and patented for this sector, such as aerial arm that is now applied on almost 50% of the iV2 FLAT line vacuum cleaners.
The design and, especially the use of Italian-made components, are characteristics of the iVision industrial vacuum cleaners range.
- Turbine with side-channel blower
- Safety valve
- Visual filling indicator
- High-working performance with heavy duty cycle
- Structure completely made of steel
- Anti-scuff wheels with parking brake
- Container capacity 100 Lt
- Quick-release container
- Remote Start&Stop control

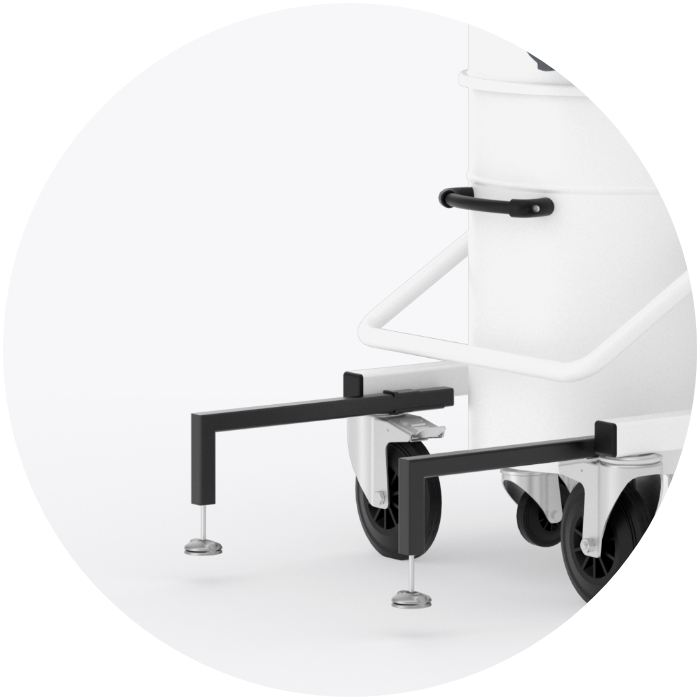

- Aerial Arm for hose support with safety valve and adjustable leveling feet
- Touch screen
- Kit to hold PVC bags inside the tank
- Lift kit in order to avoid any manual efforts by the operator during the emptying process
- Possibility of an additional 500 Lt or 1000 Lt dumpster
You can also have iVision vacuums with ATEX-Zone 22 certifcation for potentially explosive environments. More info
All iV2 FLAT line vacuum cleaners are designed to fully satisfy every single demand from the market. iVision has always set itself the goal of providing the most efficient industrial vacuum cleaners on the market.
ACCESSORIES KLEANING KIT Ø 50 mmThe cleaning kit is usable on all of the series and consists of a robust, anti-abrasion tube that ends at the extremities with special zinc-plated steel accessories capable of transporting, without any obstacle, chippings and oil from the machine tool to the vacuum collection tank. The suction tube comes housed inside a support in order to facilitate the movement of the vacuum in the workshop without being an obstable for the operator, it allows the avoidance of leakage of oil during the maneuvers of the vacuum.
ACCESSORIES KLEANING KIT Ø 70 mmThe cleaning kit, usable through the IV3 series, consists of a robust, anti-abrasion tube that ends at the extremities with special zinc-plated steel accessories capable of transporting, without any obstacle, chippings and oil from the machine tool to the vacuum collection tank. The suction tube comes housed inside a support in order to facilitate the movement of the vacuum in the workshop without being an obstable for the operator, it allows the avoidance of leakage of oil during the maneuvers of the vacuum.
HI-TECH VACUUMTo be applied to all models of industrial vacuums in production. This kit allows you to unload electrostatic charges accumulated during the collection phase, avoiding transferring them to other machinery or operators. It’s particularly recommended during the working of aluminum, considering the chips of this material can create a potentially explosive atmosphere inside of the tank.
HI-TECH VACUUMFilter cleaning with a pneumatic piston requires being connected to an air adapter from 6-8 bar and via a pressure regulator that can vary the intensity of the sliding of the piston.• To effectively clean the filters mounted inside the vacuum, the vertical piston filter cleaning system was developed. Through a manual selector (semiautomatic solution) or by a timer (automatic version) a pneumatic piston acts from the bottom of the filter, shaking it intensely in a way that ensures that the chips or the dust transferred to the outside of the filter fall into the collection tank, permitting in this way the continued optimal functioning of the filter.• Vertical piston cleaning of the filter is recommended for any type of application, as it significantly improves the cleaning of the filter compared to the vibrating motor standard version.• Vertical piston cleaning of the filter, especially in its automatic version, becomes mandatory in the suctioning of fine dust that can clog the filter rapidly. In the case of large and heavy chips, this system is not mandatory, but for light or volatile material, yes!• The principal advantage of this system comes from the greater efficiency in the incisiveness of the shaking of the filter with a piston. Another advantage is the use of this system in its automatic version, shaking the filter every time that the motor is turned off, eliminating the typical problem of the reliability of the operator, who usually has to remember to turn on the cleaning of the filter.
HI-TECH VACUUMThe kit allows the automatic switching on and off of the vacuum cleaner simultaneously with the machine tool when they are connected. This can occur in three different ways:a) The vacuum gets switched on by contact without electricity "potential free contact".b) The vacuum gets switched on with a 24V contact.c) The vacuum gets switched on with a 230V contact.
HI-TECH VACUUMThe lifting device is used for emptying the 100 Lt (iV2 model) or the 160 Lt (iV3 model) chip container with the use of a forklift. The operators do not have to make any effort for the emptying process. At the sides of the collecting containers there are two hooks for the lifting kit to be connected to, which in turn is lifted from the truck by a chain.
HI-TECH VACUUMThe gate valves that enable the closure of multiple vents allow the operator to choose to work with one, two or more hoses simultaneously. These gates can be operated manually by operators, handled automatically by machines, or remotely via foot pedal.
HI-TECH VACUUMThe aerial arm is highly recommended for every CNC router. The use of this system reduces the risk of accidents due to obstruction of the tube on the sides of the machine.
