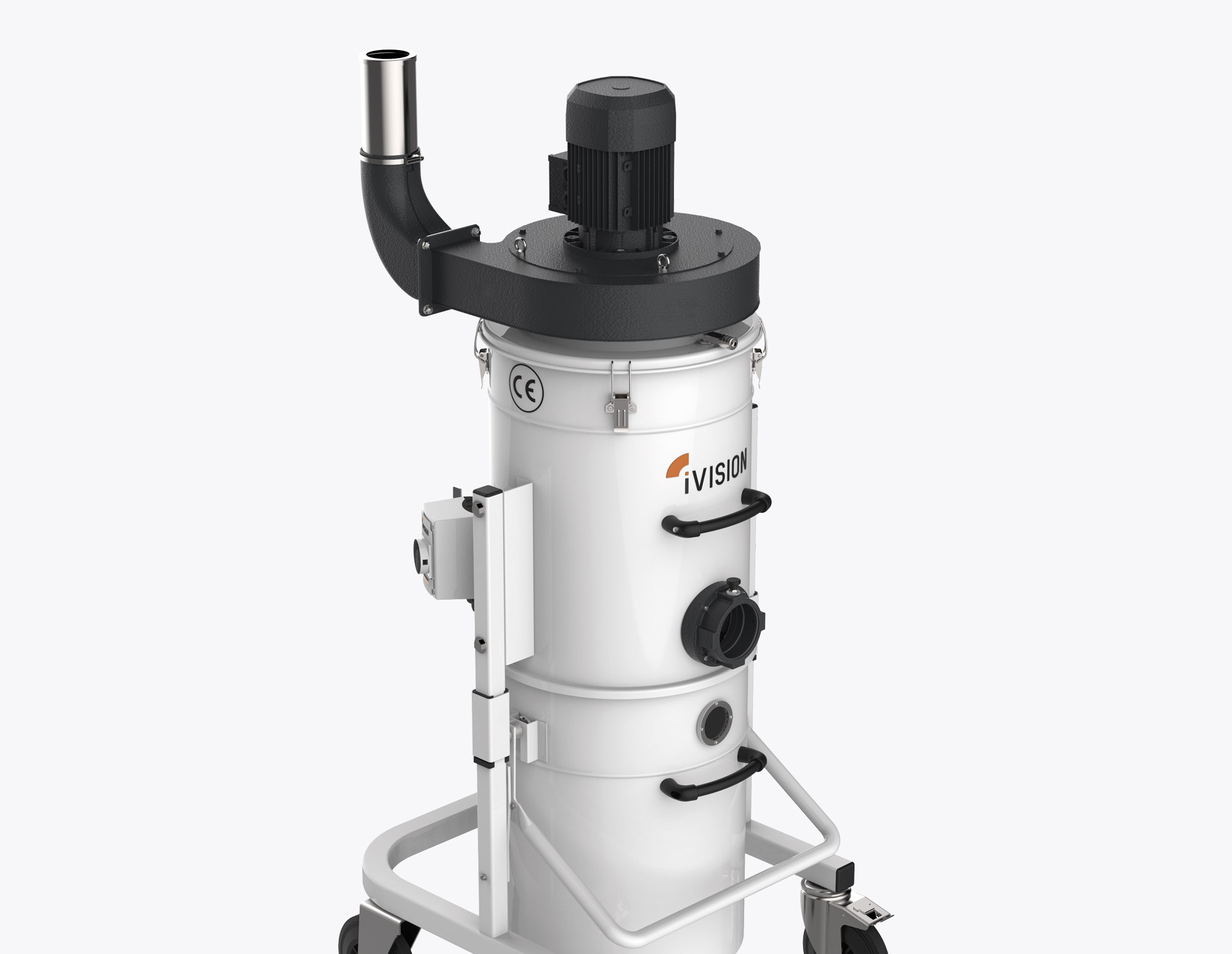

Vacuums of the iV2 Extrusion line are the medium-sized models of the iVision industrial vacuums and come recommended to be used with large, single-head saws or small, double-head saws with a medium production of chips in the work environment that produces little chips and dust. They are industrial vacuums very versatile and their ideal application is for producers of doors and windows using PVC or aluminum. The attention and care given to the design of the vacuums of the iV2 Extrusion line, combined with being composed of rubost materials characterize the iVision fan industrial vacuums. iVision has established itself over the years in the world of extrusion and windows and is recognized as upholding the utmost quality, reliability, innovation and efficiency.
High-power, electrical centrifugal fan until 1400 m3/h
Visual filling indicator
Continuous work cycle without maintenance
Structure completely made of steel

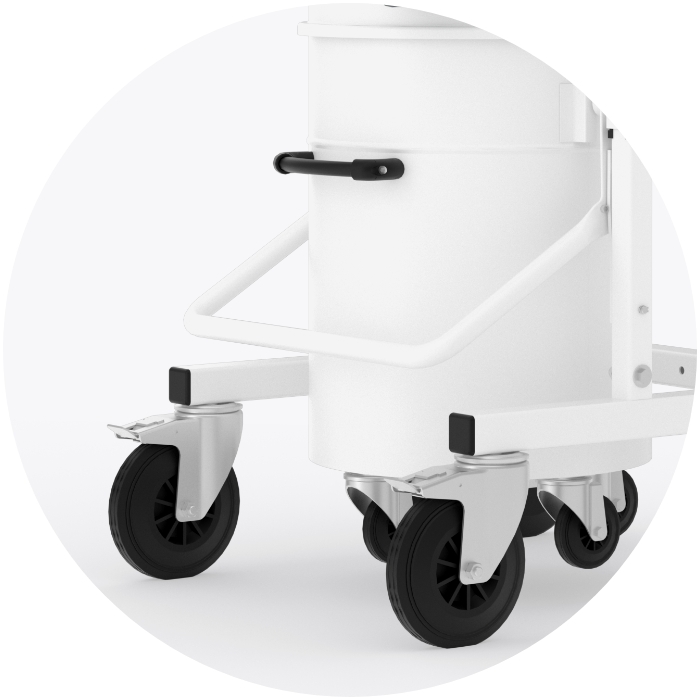

Anti-track, turning wheels with parking brakes
M Class polyester filter
Container capacity 100 L
Rapid release container
Silencer in order to reduce the noise level according to regulation
Pneumatic filter shaker (OPT) integrated (OPT)
PVC bag kit for chip collecting
Cleaning kit for cleaning the machine after the work day
Lift kit in order to avoid force on the part of the operator during the process of emptying the container
You can also have iVision vacuums with ATEX-Zone 22 certifcation for potentially explosive environments. More info
Every single vacuum of the iV2 Extrusion line was created with the thought in mind to satisfy completely every specific demand of clients using cutting centers, milling and saws, configuring itself in a short amount of time as a product of maximum efficiency.
The cleaning kit is usable on all of the series and consists of a robust, anti-abrasion tube that ends at the extremities with special zinc-plated steel accessories capable of transporting, without any obstacle, chippings and oil from the machine tool to the vacuum collection tank. The suction tube comes housed inside a support in order to facilitate the movement of the vacuum in the workshop without being an obstable for the operator, it allows the avoidance of leakage of oil during the maneuvers of the vacuum.
The cleaning kit, usable through the IV3 series, consists of a robust, anti-abrasion tube that ends at the extremities with special zinc-plated steel accessories capable of transporting, without any obstacle, chippings and oil from the machine tool to the vacuum collection tank. The suction tube comes housed inside a support in order to facilitate the movement of the vacuum in the workshop without being an obstable for the operator, it allows the avoidance of leakage of oil during the maneuvers of the vacuum.
To be applied to all models of industrial vacuums in production. This kit allows you to unload electrostatic charges accumulated during the collection phase, avoiding transferring them to other machinery or operators. It’s particularly recommended during the working of aluminum, considering the chips of this material can create a potentially explosive atmosphere inside of the tank.
Filter cleaning with a pneumatic piston requires being connected to an air adapter from 6-8 bar and via a pressure regulator that can vary the intensity of the sliding of the piston.
• To effectively clean the filters mounted inside the vacuum, the vertical piston filter cleaning system was developed. Through a manual selector (semiautomatic solution) or by a timer (automatic version) a pneumatic piston acts from the bottom of the filter, shaking it intensely in a way that ensures that the chips or the dust transferred to the outside of the filter fall into the collection tank, permitting in this way the continued optimal functioning of the filter.
• Vertical piston cleaning of the filter is recommended for any type of application, as it significantly improves the cleaning of the filter compared to the vibrating motor standard version.
• Vertical piston cleaning of the filter, especially in its automatic version, becomes mandatory in the suctioning of fine dust that can clog the filter rapidly. In the case of large and heavy chips, this system is not mandatory, but for light or volatile material, yes!
• The principal advantage of this system comes from the greater efficiency in the incisiveness of the shaking of the filter with a piston. Another advantage is the use of this system in its automatic version, shaking the filter every time that the motor is turned off, eliminating the typical problem of the reliability of the operator, who usually has to remember to turn on the cleaning of the filter.
The lifting device is used for emptying the 100 Lt (iV2 model) or the 160 Lt (iV3 model) chip container with the use of a forklift. The operators do not have to make any effort for the emptying process. At the sides of the collecting containers there are two hooks for the lifting kit to be connected to, which in turn is lifted from the truck by a chain.
The gate valves that enable the closure of multiple vents allow the operator to choose to work with one, two or more hoses simultaneously. These gates can be operated manually by operators, handled automatically by machines, or remotely via foot pedal.
iV3 Extrusion Industrial Vacuum Cleaners are the top best-selling models among iVision vacuums and are usually used alongside double-head saws or automatic cutting centers with a high chip production, or generally in all working fields where huge quantities of chips and dust are created. The iV3 Extrusion vacuum cleaners are some of iVision’s most high-performing items, for use with your machine tool. The study and the design research, the sturdy materials and the simple design, are characteristics of a product entirely made in Italy; a real guarantee on the industrial market.
The iV5 chip collectors of the Extrusion line are dedicated to intensive and continuous machining and are used alongside automatic cutting centres with high chip production. Thanks to the emptying systems by means of a rotary valve, the IV5 chip collectors are used in all work environments where a 24-hour collection is required, due to a considerable amount of chip production. The world’s leading manufacturers have been using iVision IV5 systems in the extrusion industry for several years. Thanks to their compact dimensions, silence rate and continuous emptying systems, IVision IV5 systems are particularly appreciated in the world of the extrusion industry.
The excellent performance of centrifugal fans is fully exploited. The careful study of details, the attention paid to design, the use of sturdy materials and the creation of a simple but high-performing chip collector are the features of a product entirely developed and produced in Italy.
The iV4 chip collectors of the Extrusion line are dedicated to intensive and continuous machining and are used alongside large double-head saws or automatic cutting centers with a high chip production. In general, chip collectors IV4 with 1000 litre storage buckets are used in all work environments where large amounts of chips and dust are produced. The world’s leading extrusion manufacturers have been using iVision line IV4 systems for several years. Thanks to the high chip collection capacity (up to 1000 litres) and the automatic lid opening system, IVision IV4 is particularly appreciated in the world of the extrusion industry.
The vacuums of the iV1 Extrusion are the iVision industrial vacuums most compact and economical. They are of an efficient system, rational and silent, utilized in the world of window and door manufacturers and extruders for the industrial collection of chips collected generated by small single-head saws or circular saws with low production of chips and dust. Thanks to the small dimensions of the product, that presents very robust and solid, the vacuums of the iV1 Extrusion line are used perfectly with cutting machines, guaranteeing an excellent qualitative standards as inherent to the suction effectiveness and efficiency of filtration.
