INDUSTRIAL VACUUMS FOR GENERIC CLEANING
The industrial vacuums of the iV2 Clean line are the most sold wheelable iVision vacuums and are used for intensive collecting of dust and chips (also mixed with oil) generated from the machine tools in metal-mechanical industries and warehouses. This range of industrial vacuums uses side-channel turbines and is used with great success in the world of metal working. Nearly every mechanical office needs an industrial vacuum system and it’s for this reason that iVision proposes as a trustworthy and competent manufacture to be in grade of satisfying the needs of their clients. In addition to the already ample range of wheeled industrial vacuums with side-channel turbines, iVision has created a product with a multitude of specific accessories specific for the world of industrial dust collection related to the iV2 clean line, that render the product ideal for use in every metal-mechanical warehouse. The extremely low level of noise, the ease of maintenance and above all, the design and use of Italian engine manufacturing, are all part of the fundamental characteristics of the iVision industrial vacuums.REQUEST A FREE QUOTATION
- Side-channel turbine
- Silencer mounted as standard
- Visual filling indicator
- Structure completely in steel

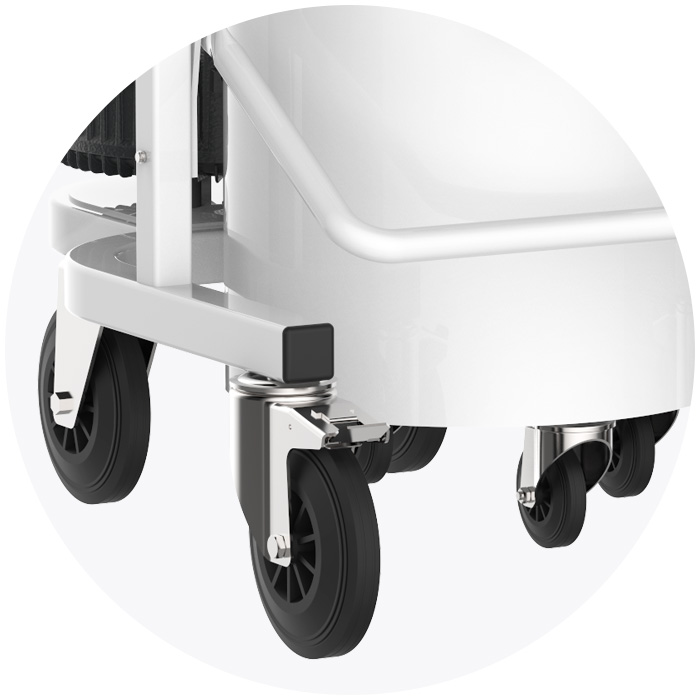

- Oil-resistant wheels with parking brake
- Container capacity 100 Liters
- Rapid-release container opening
- Pneumatic filter cleaning through vibrating motor
- Remote control start & stop
- Possibility of inserting PVC bags to collect dust
- Automatic or semi-automatic filter cleaning system
- Oil/chip separator tank
- Liftkit for emptying container with a forklift
- Antistatic kit
- Atex Zone 22
You can also have iVision vacuums with ATEX-Zone 22 certifcation for potentially explosive environments. More info
Every industrial vacuum of the iV2 Clean line were conceptualized to meet the growing needs of our clientele. In the metal-mechanical world, in fact, the name iVision is becoming the synonym for cleaning, efficiency and technology.
ACCESSORIES KLEANING KIT Ø 50 mmThe cleaning kit is usable on all of the series and consists of a robust, anti-abrasion tube that ends at the extremities with special zinc-plated steel accessories capable of transporting, without any obstacle, chippings and oil from the machine tool to the vacuum collection tank. The suction tube comes housed inside a support in order to facilitate the movement of the vacuum in the workshop without being an obstable for the operator, it allows the avoidance of leakage of oil during the maneuvers of the vacuum.
ACCESSORIES KLEANING KIT Ø 70 mmThe cleaning kit, usable through the IV3 series, consists of a robust, anti-abrasion tube that ends at the extremities with special zinc-plated steel accessories capable of transporting, without any obstacle, chippings and oil from the machine tool to the vacuum collection tank. The suction tube comes housed inside a support in order to facilitate the movement of the vacuum in the workshop without being an obstable for the operator, it allows the avoidance of leakage of oil during the maneuvers of the vacuum.
HI-TECH VACUUMFor floor cleaning, iVision has developed a specific kit with a fixed brush positioned on the front part of the vacuum with a handle for manuevering.
HI-TECH VACUUMTo be applied to all models of industrial vacuums in production. This kit allows you to unload electrostatic charges accumulated during the collection phase, avoiding transferring them to other machinery or operators. It’s particularly recommended during the working of aluminum, considering the chips of this material can create a potentially explosive atmosphere inside of the tank.
HI-TECH VACUUMFilter cleaning with a pneumatic piston requires being connected to an air adapter from 6-8 bar and via a pressure regulator that can vary the intensity of the sliding of the piston. • To effectively clean the filters mounted inside the vacuum, the vertical piston filter cleaning system was developed. Through a manual selector (semiautomatic solution) or by a timer (automatic version) a pneumatic piston acts from the bottom of the filter, shaking it intensely in a way that ensures that the chips or the dust transferred to the outside of the filter fall into the collection tank, permitting in this way the continued optimal functioning of the filter. • Vertical piston cleaning of the filter is recommended for any type of application, as it significantly improves the cleaning of the filter compared to the vibrating motor standard version. • Vertical piston cleaning of the filter, especially in its automatic version, becomes mandatory in the suctioning of fine dust that can clog the filter rapidly. In the case of large and heavy chips, this system is not mandatory, but for light or volatile material, yes! • The principal advantage of this system comes from the greater efficiency in the incisiveness of the shaking of the filter with a piston. Another advantage is the use of this system in its automatic version, shaking the filter every time that the motor is turned off, eliminating the typical problem of the reliability of the operator, who usually has to remember to turn on the cleaning of the filter.
HI-TECH VACUUMMetallic mesh chips separator from lubrication. This optional accessory allows you to perfectly separate aspirated solid materials from liquid, to facilitate their storage and/or disposal. The chip separator holds the solid material allowing the liquid to deposit to the bottom of the collection tank.
HI-TECH VACUUMThe kit allows the automatic switching on and off of the vacuum cleaner simultaneously with the machine tool when they are connected. This can occur in three different ways: a) The vacuum gets switched on by contact without electricity "potential free contact". b) The vacuum gets switched on with a 24V contact. c) The vacuum gets switched on with a 230V contact.
HI-TECH VACUUMThe lifting device is used for emptying the 100 Lt (iV2 model) or the 160 Lt (iV3 model) chip container with the use of a forklift. The operators do not have to make any effort for the emptying process. At the sides of the collecting containers there are two hooks for the lifting kit to be connected to, which in turn is lifted from the truck by a chain.
