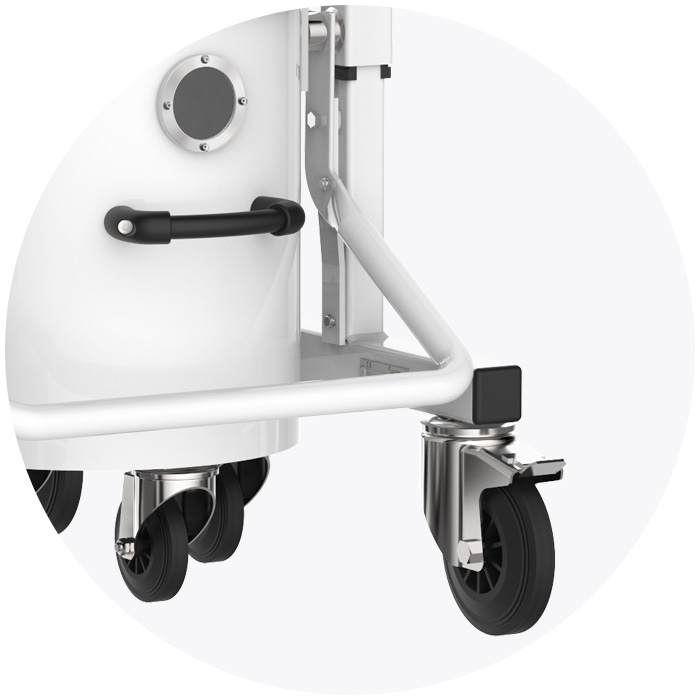

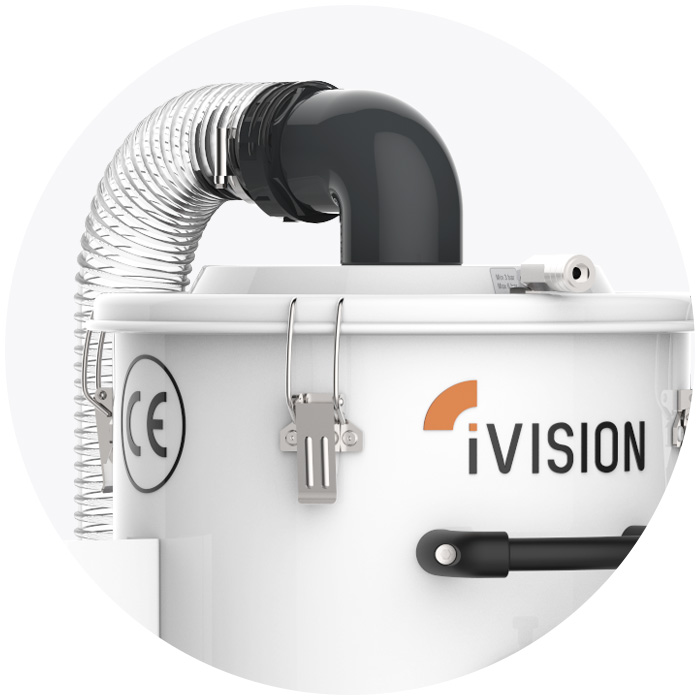

The wheeled industrial vacuums of the iV1 Sand line are the most compact of the iVision industrial vacuums. We’ve developed a range of industrial vacuums models with side-channel turbines, used with enormous success in the world of industrial sandblasting. Thanks to its compact dimensions, the industrial vacuums of the iV1 Sand line allow the operator to easily move it within tight spaces. The dust and grits generated from sandblasters need an industrial suction particularly efficient and constant in order to safeguard the health of the operators and render the work more efficient. In addition to the ample range of three-phase, side-channel industrial vacuums, we’ve created and patented a series of accessories specific for the sandblasting world for the iV1 Sand line, that makes our products the ideal and indispensable solution for every sandblaster. In addition to the low noise level and the ease of maintenance, along with the design and utilization of Italian components, these are the known characteristics of iVision industrial vacuums.
Automatic and semiautomatic filter cleaning systems
Atex Zone 22
You can also have iVision vacuums with ATEX-Zone 22 certifcation for potentially explosive environments. More info
All of the vacuums of the iV1 Sand line were imagined, designed and produced to meet the growing demands of our clients. In the industrial sandblasting world the name iVision is becoming a synonym for optimum performance and high technology.
For office or the work environment at the end of the day cleaning, iVision has developed a cleaning kit particularly robust dedicated to the sandblasting world. This version can be enlarged according to the specific needs of the client and can be easily attached through special supports on the side of the vacuum, this also helps avoid the tube from impeding the vacuum movement.
To be applied to all models of industrial vacuums in production. This kit allows you to unload electrostatic charges accumulated during the collection phase, avoiding transferring them to other machinery or operators. It’s particularly recommended during the working of aluminum, considering the chips of this material can create a potentially explosive atmosphere inside of the tank.
This is a sieve made of a perforated sheet that allows, during suction, to retain the residue generated during blasting oprations and in general dirt. It has two comfortable handles the permit the removal of the container and the repositioning after having emptying the container.
Filter cleaning with a pneumatic piston requires being connected to an air adapter from 6-8 bar and via a pressure regulator that can vary the intensity of the sliding of the piston.
• To effectively clean the filters mounted inside the vacuum, the vertical piston filter cleaning system was developed. Through a manual selector (semiautomatic solution) or by a timer (automatic version) a pneumatic piston acts from the bottom of the filter, shaking it intensely in a way that ensures that the chips or the dust transferred to the outside of the filter fall into the collection tank, permitting in this way the continued optimal functioning of the filter.
• Vertical piston cleaning of the filter is recommended for any type of application, as it significantly improves the cleaning of the filter compared to the vibrating motor standard version.
• Vertical piston cleaning of the filter, especially in its automatic version, becomes mandatory in the suctioning of fine dust that can clog the filter rapidly. In the case of large and heavy chips, this system is not mandatory, but for light or volatile material, yes!
• The principal advantage of this system comes from the greater efficiency in the incisiveness of the shaking of the filter with a piston. Another advantage is the use of this system in its automatic version, shaking the filter every time that the motor is turned off, eliminating the typical problem of the reliability of the operator, who usually has to remember to turn on the cleaning of the filter.
For those that need a continuous work cycle in construction environments and need to empty without interrupting work due to turning off the vacuum to empty the collection container, the iVision rotary valve kit is an interesting solution.
The industrial vacuums of the iV2 Sand line are used to collect dust and grit from sand in industrial environments where professional and efficient collection is needed to maintain a clean and healthy work environment for operators. iVision with this in mind has developed a range of industrial dust collection models with a side-channel turbine, dedicated to the world of industrial sandblasting. Besides the 100-liter collection capacity, the industrial vacuums of the iV2 Sand line permit the operator to move with agility in restricted spaces. The objective of an efficient industrial collection should be in the first place to safeguard the health of operators and to render the work done more efficient. For this exact reason the dust and grit generated from sandblasting need an industrial collection particularly efficient and constant; this is made possible by the industrial vacuums of the iV2 Sand line of iVision. In addition to the large range of wheeled industrial vacuums with side channel turbines, iVision has created and patented many accessories dedicated to the sandblasting world, specifically for the iV2 Sand line, that make every sandblaster capable of using a custom product for their needs. The low noise level and the ease of maintenance distinguishes iVision for its design and use of Italian components.
The industrial vacuums of the iV3 Sand line are utilized for intensive dust and grit collection in construction or in large companies. These wheeled vacuums come used in a continuous way alongside sandblasters during construction and/or restructuring of boats or buildings. For having a 160 liter collection tank, the industrial vacuums of the Sand iV3 line are very manageable and allow the operator to move in tight spaces. The objective of an efficient and secure industrial collection needs to be first and foremost to safeguard the health of the operator and simultaneously that of collecting in large quantities the dust and grit in the shortest amount of time possible, also from a distance. This exact type of work can be done, in naval construction or in general in the world of construction where dust and grit generated needs to be collected with particular and constant efficiency thanks to the industrial vacuums of the iV3 Sand line of iVision. In addition to the ample range of wheeled, side channel turbine industrial vacuums, iVision has created and patented a large amount of accessories dedicated to the sandblasting world for the iV3 Sand line. These accessories render the industrial vacuum a custom product capable of satisfying the requests of clients with the most demanding of circumstances. The noise level of the industrial vacuums of the iV3 Sand line respect the limits of the law thanks to a silencer dedicated to this series of side channel turbines.
The extensive experience of our staff, just like the continuous desire to satisfy the requests of the most demanding clients, inspired the development of high technology products with personalized solutions to the world of industrial sandblasting.
The industrial vacuums of the iVCustom Sand line come designed with the scope of finding specific solutions for the collection of dust and grit produced during the process of sandblasting in building and boat construction.
One of the most frequent needs is that of working in a continuous cycle of industrial collection in construction and to eliminate interrupting the work due to turning off the vacuum to empty the collection tank.
For this, iVision has developed wheeled industrial vacuums of the iVCustom Sand line with the solution of continuous emptying through a rotary valve directly from the sandblaster, creating in this way a system of continuous work.
