INDUSTRIAL VACUUM CLEANERS FOR METAL & PVC CHIPS

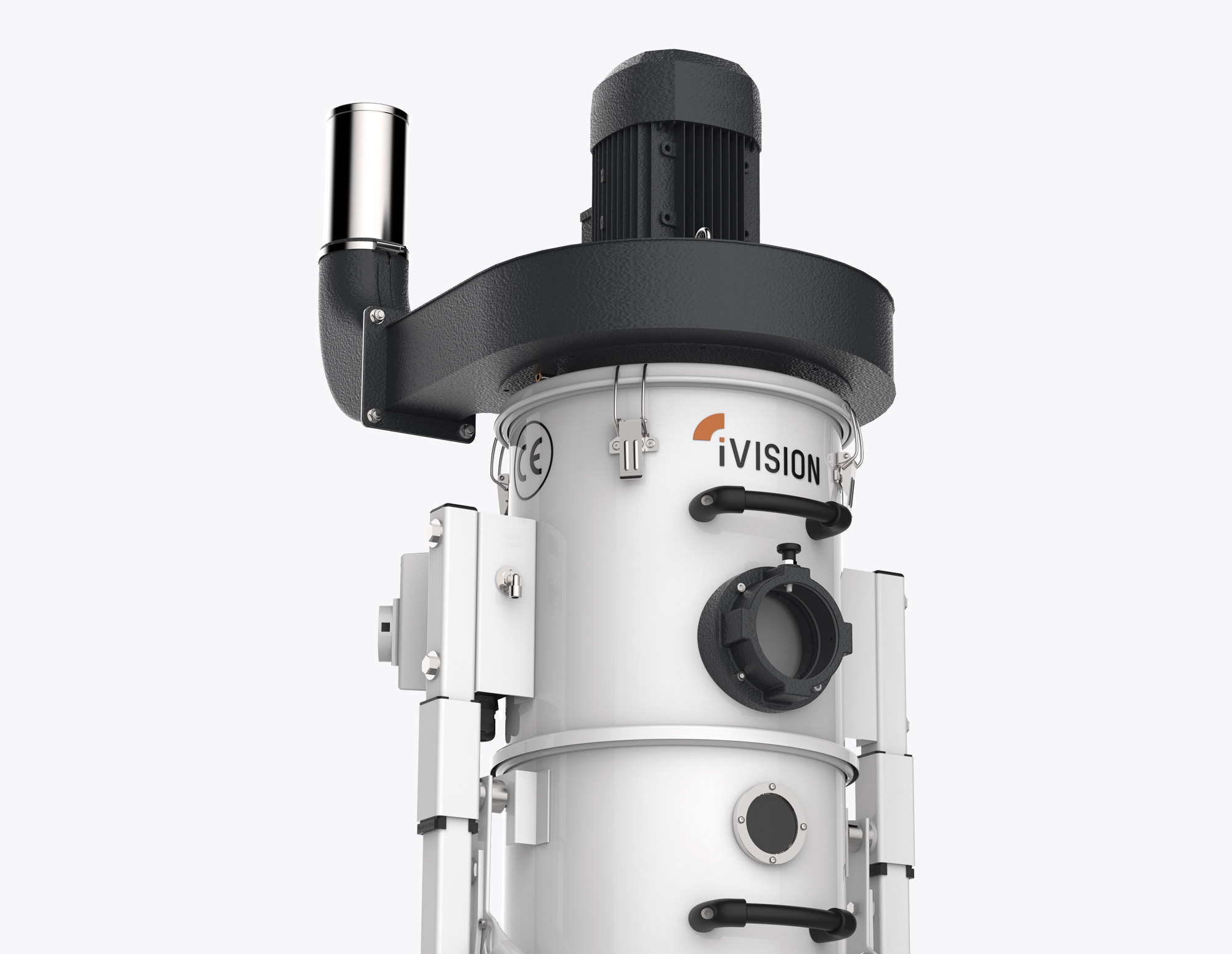

The iV1 vacuum cleaners of the Extrusion line are the most compact of the iVision range.
They are used together with small single -head saws with low production of chips and dust, as they are ideal for the collection of light materials such as PVC, aluminum and other light alloys.
The compact dimensions of the iV1 allow the operator to move with agility in confined spaces while maintaining an excellent quality standard in terms of suction and filtration efficiency efficiency.
Thanks to the three-phase motors these vacuums cleaners can safely work continuously with minimal maintenance.
STANDARD BASIC SUPPLY
- High flow centrifugal fans up to 1200 m³ / h
- Completely steel structure
- Non-marking swivel wheels with parking brake
- M class polyester bag filter (stops 99.9% of the sucked particles)
- Detachable container with wheels
- Container capacity 38 liters
- External exhaust with silencer
- Pneumatic filter shaker
- Use and maintenance manual
- C.E. certification
- Motor overload protector
- Electric cable 8 mt
ACCESSORIES KLEANING KIT Ø 50 mmThe cleaning kit is usable on all of the series and consists of a robust, anti-abrasion tube that ends at the extremities with special zinc-plated steel accessories capable of transporting, without any obstacle, chippings and oil from the machine tool to the vacuum collection tank. The suction tube comes housed inside a support in order to facilitate the movement of the vacuum in the workshop without being an obstable for the operator, it allows the avoidance of leakage of oil during the maneuvers of the vacuum.
ACCESSORIES KLEANING KIT Ø 70 mmThe cleaning kit, usable through the IV3 series, consists of a robust, anti-abrasion tube that ends at the extremities with special zinc-plated steel accessories capable of transporting, without any obstacle, chippings and oil from the machine tool to the vacuum collection tank. The suction tube comes housed inside a support in order to facilitate the movement of the vacuum in the workshop without being an obstable for the operator, it allows the avoidance of leakage of oil during the maneuvers of the vacuum.
HI-TECH VACUUMTo be applied to all models of industrial vacuums in production. This kit allows you to unload electrostatic charges accumulated during the collection phase, avoiding transferring them to other machinery or operators. It’s particularly recommended during the working of aluminum, considering the chips of this material can create a potentially explosive atmosphere inside of the tank.
HI-TECH VACUUMFilter cleaning with a pneumatic piston requires being connected to an air adapter from 6-8 bar and via a pressure regulator that can vary the intensity of the sliding of the piston. • To effectively clean the filters mounted inside the vacuum, the vertical piston filter cleaning system was developed. Through a manual selector (semiautomatic solution) or by a timer (automatic version) a pneumatic piston acts from the bottom of the filter, shaking it intensely in a way that ensures that the chips or the dust transferred to the outside of the filter fall into the collection tank, permitting in this way the continued optimal functioning of the filter. • Vertical piston cleaning of the filter is recommended for any type of application, as it significantly improves the cleaning of the filter compared to the vibrating motor standard version. • Vertical piston cleaning of the filter, especially in its automatic version, becomes mandatory in the suctioning of fine dust that can clog the filter rapidly. In the case of large and heavy chips, this system is not mandatory, but for light or volatile material, yes! • The principal advantage of this system comes from the greater efficiency in the incisiveness of the shaking of the filter with a piston. Another advantage is the use of this system in its automatic version, shaking the filter every time that the motor is turned off, eliminating the typical problem of the reliability of the operator, who usually has to remember to turn on the cleaning of the filter.
HI-TECH VACUUMThe kit allows the automatic switching on and off of the vacuum cleaner simultaneously with the machine tool when they are connected. This can occur in three different ways: a) The vacuum gets switched on by contact without electricity "potential free contact". b) The vacuum gets switched on with a 24V contact. c) The vacuum gets switched on with a 230V contact.
HI-TECH VACUUMThe gate valves that enable the closure of multiple vents allow the operator to choose to work with one, two or more hoses simultaneously. These gates can be operated manually by operators, handled automatically by machines, or remotely via foot pedal.
