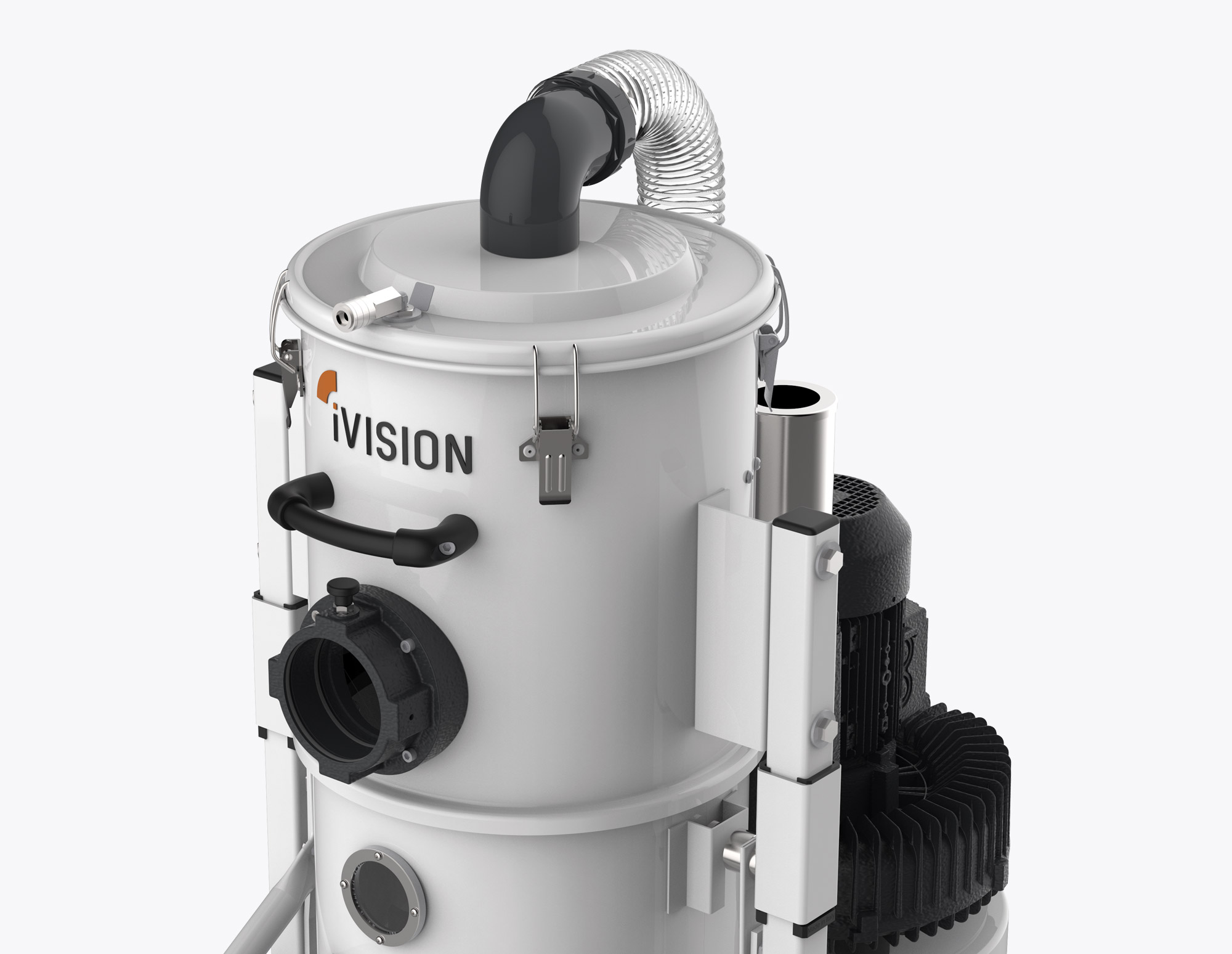

The industrial vacuums of the iV1 Clean line are the most compact and maneuverable of all the iVision industrial vacuums. Our company produced a specific series of industrial vacuums with side-channel turbines to use for industrial cleaning. Our models are used for generic industrial cleaning in metal-mechanical companies, and also to support a machine tool with an industrial vacuum. Swarf, chips, and dust generated from machine tools in metal-mechanical companies require a constant and efficient removal on part of the operators to guarantee a precise, high-quality finished product and above all, to safeguard the health of the operators. In addition to the ample range of side-channel turbine industrial vacuums, iVision also designed and patented many specific accessories for the world of industrial dust collection related to the iV1 Clean line, which render our products the ideal and indispensable solution for every metal-mechanical warehouse. Also, the extremely low noise level, and the ease of maintenance, the design and use of Italian engine manufacturing, are all part of the distinctive characteristics of every iVision industrial vacuum.
Automatic or semi-automatic filter cleaning system
Loading cell with a “full container” alert system
Oil/chip separator tank
Atex Zone 22
You can also have iVision vacuums with ATEX-Zone 22 certifcation for potentially explosive environments. More info
Every industrial vacuum of the iV1 Clean line was designed and developed to meet the continuously growing specific demands of our clients. In the metal-mechanic world, the name iVision has been always more associated with efficiency, technology and guaranteed clean.
The cleaning kit is usable on all of the series and consists of a robust, anti-abrasion tube that ends at the extremities with special zinc-plated steel accessories capable of transporting, without any obstacle, chippings and oil from the machine tool to the vacuum collection tank. The suction tube comes housed inside a support in order to facilitate the movement of the vacuum in the workshop without being an obstable for the operator, it allows the avoidance of leakage of oil during the maneuvers of the vacuum.
The cleaning kit, usable through the IV3 series, consists of a robust, anti-abrasion tube that ends at the extremities with special zinc-plated steel accessories capable of transporting, without any obstacle, chippings and oil from the machine tool to the vacuum collection tank. The suction tube comes housed inside a support in order to facilitate the movement of the vacuum in the workshop without being an obstable for the operator, it allows the avoidance of leakage of oil during the maneuvers of the vacuum.
To be applied to all models of industrial vacuums in production. This kit allows you to unload electrostatic charges accumulated during the collection phase, avoiding transferring them to other machinery or operators. It’s particularly recommended during the working of aluminum, considering the chips of this material can create a potentially explosive atmosphere inside of the tank.
Filter cleaning with a pneumatic piston requires being connected to an air adapter from 6-8 bar and via a pressure regulator that can vary the intensity of the sliding of the piston.
• To effectively clean the filters mounted inside the vacuum, the vertical piston filter cleaning system was developed. Through a manual selector (semiautomatic solution) or by a timer (automatic version) a pneumatic piston acts from the bottom of the filter, shaking it intensely in a way that ensures that the chips or the dust transferred to the outside of the filter fall into the collection tank, permitting in this way the continued optimal functioning of the filter.
• Vertical piston cleaning of the filter is recommended for any type of application, as it significantly improves the cleaning of the filter compared to the vibrating motor standard version.
• Vertical piston cleaning of the filter, especially in its automatic version, becomes mandatory in the suctioning of fine dust that can clog the filter rapidly. In the case of large and heavy chips, this system is not mandatory, but for light or volatile material, yes!
• The principal advantage of this system comes from the greater efficiency in the incisiveness of the shaking of the filter with a piston. Another advantage is the use of this system in its automatic version, shaking the filter every time that the motor is turned off, eliminating the typical problem of the reliability of the operator, who usually has to remember to turn on the cleaning of the filter.
Metallic mesh chips separator from lubrication. This optional accessory allows you to perfectly separate aspirated solid materials from liquid, to facilitate their storage and/or disposal. The chip separator holds the solid material allowing the liquid to deposit to the bottom of the collection tank.
The industrial vacuums of the iV3 Clean line are without a doubt the strongest of the wheeled iVision vacuums and are used to carry out important cleaning jobs and to deep-clean large machine tools with large accumulations of residual metals and liquids. They are used for general cleaning of companies and as an integration to machine tools of various types. Whether they use lathes, saws, or work centers, every metal-mechanical company produces – in large or small quantities- chips, dust or swarf that need to be efficiently collected in order to maintain clean machine tools and offices, but above all in order to safeguard the health of operators. The objective of these industrial vacuums of the Clean iV3 line are the winning weapon to maintain a clean company. In additional to industrial vacuums with side-channel turbines of the iV3 Clean line, iVision also projected a product of a dedicated series with specific accessories for the metal-mechanical industry that render all of our industrial vacuums ideal and indispensable for any office.
iVision from its nature has always been attentive to the specific demands of every client. In this perspective, iVision’s technical and prototype department in collaboration with the sales network, are always active to find innovative and flexible solutions made custom for every client. All of the active companies in the world of metalworking that utilize lathes, saws, and in general work centers that produce swarf that need an adequate material collection. The industrial vacuums of the Clean iV Custom line, are custom designed based on the true demands of the client to collect chips and liquid from lathes, saws, and work centers. When it comes to, for example, industrial cleaning systems for floors, iVision has always developed a specific kit composed of a fixed brushed positioned in the front part of the vacuum and a handle for moving. In other cases a single iVision industrial vacuum from the iV Custom line can be utilized by more than one operator simultaneously with the cleaning kit of various diameters (50mm, 70mm, 100mm) to take the utmost advantage of the excellent performance of the side-channel turbine.
The industrial vacuums of the iV2 Clean line are the most sold wheelable iVision vacuums and are used for intensive collecting of dust and chips (also mixed with oil) generated from the machine tools in metal-mechanical industries and warehouses. This range of industrial vacuums uses side-channel turbines and is used with great success in the world of metal working. Nearly every mechanical office needs an industrial vacuum system and it’s for this reason that iVision proposes as a trustworthy and competent manufacture to be in grade of satisfying the needs of their clients. In addition to the already ample range of wheeled industrial vacuums with side-channel turbines, iVision has created a product with a multitude of specific accessories specific for the world of industrial dust collection related to the iV2 clean line, that render the product ideal for use in every metal-mechanical warehouse. The extremely low level of noise, the ease of maintenance and above all, the design and use of Italian engine manufacturing, are all part of the fundamental characteristics of the iVision industrial vacuums.
